General Introduction:
1.Product Functions:

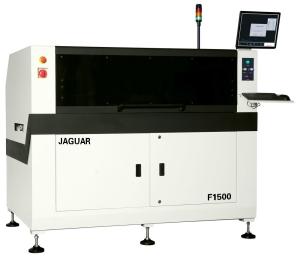

F850 is a high accuracy extra dimension printing robot designed for high precisionscreen printing or stencil printing in SMT industry.
2.Product Features:
1.Wide compatibility for PCB dimensions from 100mm x 80mm to 850mm x
500mm and PCB thickness from 0.8mm to 6mm.
2.High printing resolution
1. High positional accuracy, repeated positioning accuracy ±0.01mm;
printing accuracy 0.025mm.
2. Support glue printing.
3.Automatic control improves production efficiency, quality control
and saves production cost:
3. Automatic stencil positioning
4. Automatic PCB alignment
5. Automatic adjustment of squeegee pressure
6. Automatic printing
7. Automatic stencil cleaning (dry-type, wet-type and vacuum-type)
4.Adopt company independently developed suspended print head and
programmable automatic pressure adjustment system with pressure closed-loop feedback.
Support on-line real time pressure feedback and automatic squeegee
pressure balancing. Accurate pressure control ensures perfect
forming effect of solder paste.
Specification
* The following data is obtained under ambient temperature of 25 ℃
and humidity of 60%
| Items: Jaguar F850 | | Parameter |
| Repeat Position Accuracy | ±0.01mm |
| Printing Accuracy | ±0.025mm(Absolute Guarantees) |
| Cycle Time | <11s (Excluding Printing & Cleaning) |
| Products Changeover | <5Min |
| Screen Stencil Size/Min | 737mm*737mm(Note: Cleaning Adhesive tape shall be replaced for 737mm stencil) |
| Screen Stencil Size/Max | 1100mm*900mm |
| Screen Stencil Thickness | 20mm ~ 40mm |
| PCB Size/Min | 100*80mm |
| PCB Size/Max | 850*500mm |
| PCB Thickness | 0.8~6mm |
| PCB Warpage Ratio | <1%(Based on diagonal length) |
| Bottom of Board Size | 13mm(standard configuration), 25mm(optional configuration) |
| Edge of Board Size | 3mm |
| Transport Height | 900±40mm |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right |
| Transport Speed | 100-1500mm/sec Programmable |
| Board Location | Support System | Magnetic pin/ Side support block/ Flexible automatic pin(optional) |
| Clamping System | Elastic side clamping/Vacuum nozzle/Elastic Z-direction tabletting(optional) |
| Print head | Programmable integrated motor driven and pneumatic control print head |
| Squeegee Speed | 10~200mm/sec |
| Squeegee Pressure | 0~0.5MPa with adjustable pressure reducing meter valve |
| Squeegee Angle | 60°(Standard)/ 55°/ 45° |
| Squeegee Type | Steel squeegee (standard), rubber squeegee, customizable other types of squeegee. |
| Stencil Separation Speed | 0.1~20mm/sec Programmable |
| Cleaning Methods | Dry-type, wet-type, vacuum-type (Programmable combination of
Cleaning methods) |
| Table Adjustment Range | X: ±4mm;Y:±6mm;θ:±2° |
| Type of Image Fiducial Mark | Standard geometry shape of fiducial mark, bonding pad / stencil
hole |
| Camera System | Single digital camera with upward/downward vision system |
| Air Pressure | 4~6Kg/cm2 |
| Air Consumption | Approx 0.07m3 /min |
| Control Method | PC Control |
| Power Supply | AC:220±10%,50/60HZ 1Φ 1.5KW |
| Machine Dimensions | 1740mm(W)*1560mm(D)*1510(H)mm (excluding the height of indicating lighthouse) |
| Weight | Approx:1300Kg |
| Operation Temperature | -20°C ~ +45°C |
| Operation Humidity | 30%~60% |
