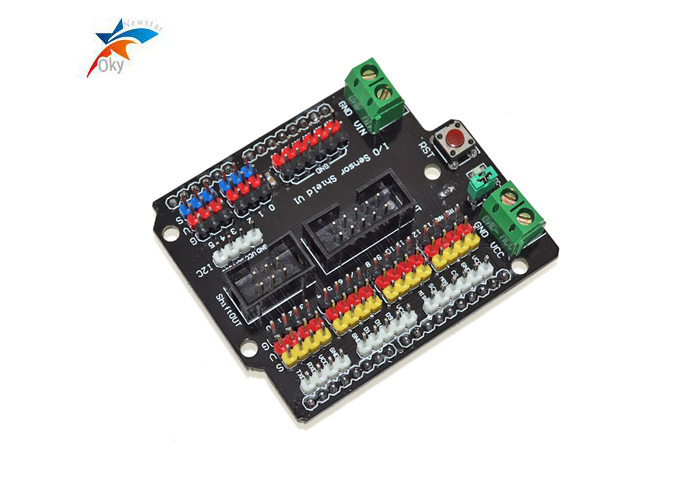

New IO Sensor
Shield V1 Development Board For UNO R3
Conveniently
Speicification:
6 analog interfaces
14 digital interfaces
1 I2C interface (A4 SDA, A5 SCL)
1 SD card expansion interface
1 TTL serial port
1 3-channel PWM full-color LED interface (D9, D10, D11)
10P parallel LCD interface
6P595 serial module expansion port
External reset interface
3.3v, 5V power interface
VIN external power input
Servo auxiliary power supply port
Reset button
Fully compatible with UNO R3 interface
New color row of needle seat, yellow for the digital mouth, blue
for the analog port, red for the power interface, easy to identify
All 3P interfaces are compatible with 3P DuPont sensor cable colors
to prevent insertion errors
All gold-plated pins, materials used sophisticated, electrical
performance and stability
Excellent PCB design, beautiful and generous
A variety of special interface design, compatible with my shop a
variety of electronic building blocks, easy to use.
Package included:
1 pc New IO Sensor Shield V1
we also provide ODM service.
More Product:
 | UNO R3 + breadboard 400 point + 9V battery snap Starter Learning
Kit |  | HC-06 Bluetooth Wireless Module |
 | Mega 2560 R3 ( CH340G ) |  | HC-SR501 Human body Pyroelectric Infrared sensor PIR |

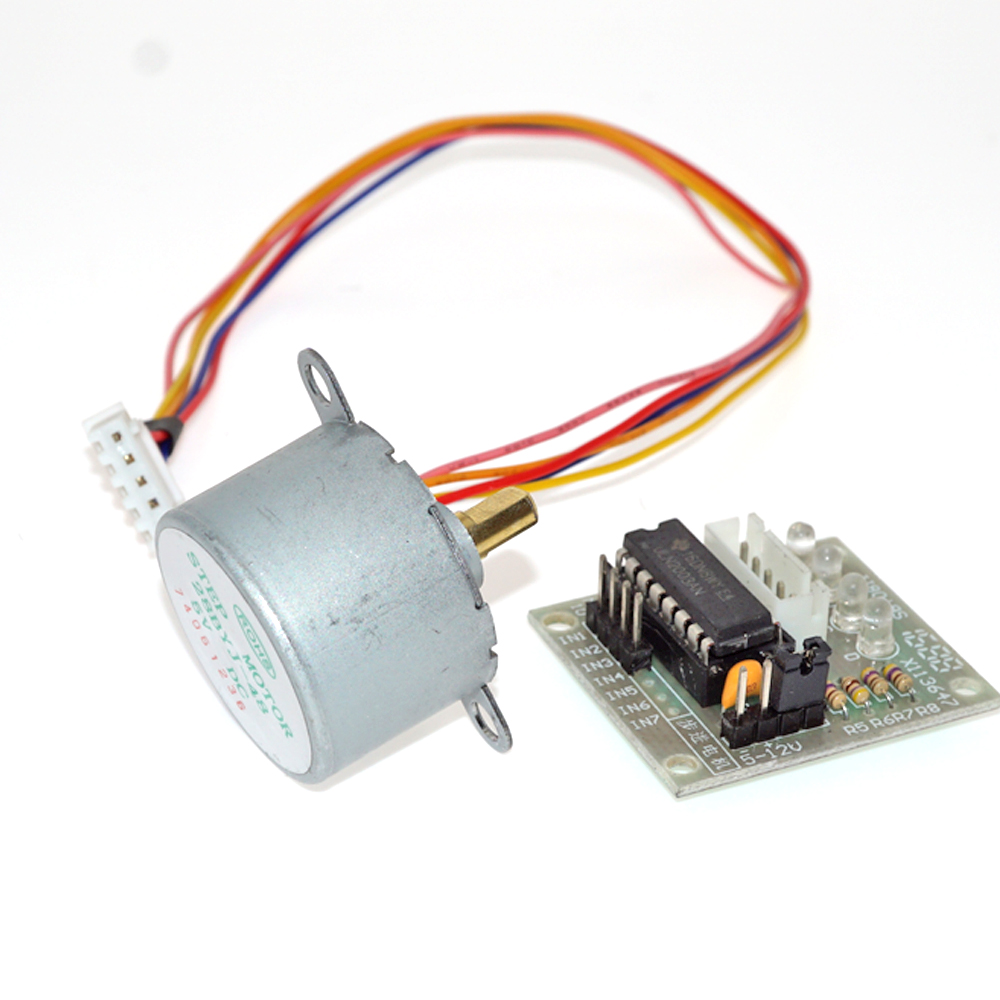

 | DC 5V Stepper Motor 28BYJ-48 + ULN2003 Driver Test Module |  | Ultrasonic Sensor HC-SR04 |
