M5 Brass Rivet Nut Open end M5 Brass Insert nut metric flat head
threaded insert
Material: Brass
Size: M5, customized
Grip: 0.5-2.5mm
Flat Head Rivet Nut/Thin Sheet Nut-Insert Open End Type
Details Both for Finish Zinc Coated and Stainless Steel Type

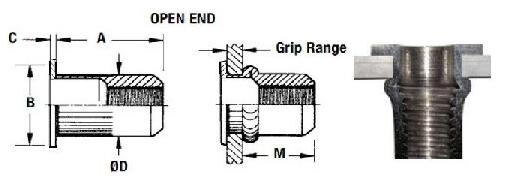

| SIZE | Item Number I/N | Grip Range | M | B Head dia | D body dia | Hole size +0.1 -0 | C head thickness | A length |
| M3*0.5 | FHR-M305-1.5 | 0.5-1.5 | 6.0 | 8.0 | 4.9 | 5.0 | 0.8 | 10.0 |
| M4*0.7 | FHR-M407-2.0 | 0.5-2.0 | 6.0 | 9.0 | 5.9 | 6.0 | 0.8 | 10.5 |
| M4*0.7 | FHR-M407-3.5 | 2.0-3.5 | 6.0 | 9.0 | 5.9 | 6.0 | 0.8 | 12.0 |
| M5*0.8 | FHR-M508-2.5 | 0.5-2.5 | 7.5 | 10.0 | 6.9 | 7.0 | 1.0 | 13.0 |
| M5*0.8 | FHR-M508-5.0 | 2.5-5.0 | 8.5 | 10.0 | 6.9 | 7.0 | 1.0 | 16.5 |
| M6*1.0 | FHR-M610-3.0 | 0.5-3.0 | 9.2 | 12.3 | 8.9 | 9.0 | 1.3 | 15.5 |
| M6*1.0 | FHR-M610-5.5 | 3.0-5.5 | 10.5 | 12.3 | 8.9 | 9.0 | 1.3 | 19.5 |
| M8*1.25 | FHR-M8125-3.5 | 1.0-3.5 | 11.5 | 14.5 | 10.9 | 11.0 | 1.5 | 18.5 |
| M8*1.25 | FHR-M8125-6.0 | 3.5-6.0 | 11.5 | 14.5 | 10.9 | 11.0 | 1.5 | 21.0 |
| M10*1.5 | FHR-M1015-4.0 | 1.0-4.0 | 13.5 | 17.0 | 12.9 | 13.0 | 1.7 | 21.5 |
| M10*1.5 | FHR-M1015-6.5 | 4.0-6.5 | 13.5 | 17.0 | 12.9 | 13 | 1.7 | 24.0 |
| M12*1.75 | FHR-M12175-4.0 | 1.0-4.0 | 13.5 | 18.0 | 14.9 | 15.0 | 1.7 | 22.0 |
| M12*1.75 | FHR-M12175-6.5 | 4.0-6.5 | 14.0 | 18.0 | 14.9 | 15.0 | 1.7 | 25.0 |
| *******Size in Red is Normal length,for extra length pls
contact&check with us*********** |
◊Advantages:
Lead-In Chamfer :The chamfer on the nut body makes the nut easier insert into the
work piece.
Large Flange: Has a large bearing surface it helps improve push-out Ability.
Wide Grip Range: Material thickness ranging from (0,5mm) to (6.5mm).
High-StrengthThreads : Nuts have a work-hardened surface providing high-strength, load-bearing threads.
Other size/shape/colour please contact us for customized service.
Thank you.
Please contact us directly for customized service.
skype: david.fuszls
email: szls@szlstech.com
Price & Payment
Please contact me for discount for mix order and bulk order.
We accept T/T, Western Union, Moneygram,Paypal.
Packing
Ziplock bag in bubble bag or small box,according to the Qty.
Delivery time
5-10 days after the payment, according to the Qty.
Shipping
By air express or by sea, according to your requirements.
