Cotton Fabric Printing Machine For Sample Making Printing Solutions
Product Features:
- SAER Textile Inkjet Printer:with high resolution,outdoor and indoor
applied,designed especially for printing of textile,sublimation
banner cloth etc.
- This unit is double 4 color type outdoor and indoor printer,Adopts
the Epson 5th Generation of piezo technology,two heads,each head
has 1440 nozzles in 8 rows,long using life.

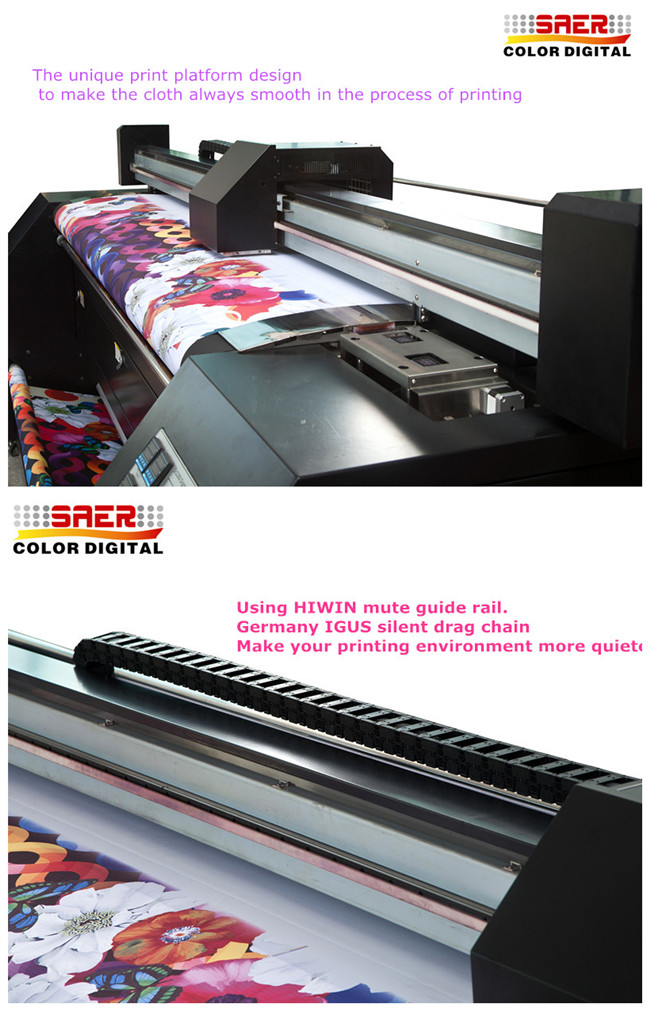

- Using HIWIN mute guide rail.germany IGUS silent drag chain,make
your printing environment more quiet.
- Strong Media Feed-in system,for smooth printing on heavy
materials,such as textile,sublimation banner cloth and so on.
- X axis and Y axis are using AC serve motors
1 Economical textile printer ideal for producing soft signage.
2 Directly print on different type of fabrics.
3 Standard 2.2m print wide, print up to 40sqm / h for high-volume
production.
4 Double 4 colors ink ensure rich, vibrant colors.
5 Rigid construction for durable performance
6 Refillable ink cartridge reducing production cost.
Print on: Flag cloth,polyester,canvas,oxford,the peach
skin,satin,pattern-book
Technical Details:
| Brand Name | SAER |
Model | CSR 2200 |
Printer head technology | Piezo technology |
| Print Head | Epson DX5 |
Color mode | Double four color(C,M,Y,K) |
Nozzles | (180 nozzles x 8 lines ) x2 heads |
Printer head higher | 1.5mm / 6mm ( Adjustable ) |
Ink supply model | Continuous ink supply |
Maximum materials width | 2400mm |
Maximum printing width | 2200mm |
Roll diameter | 3 Inch |
Maximum weight for roll material | 100kg |
Interface | USB 2.0 |
RAM | 128M |
Print Power | AC100-120V./AC220-240V(Adaptive) 50/60Hz |
Power consumption | Direct dye sublimation heater 3500W |
Printer 100w |
Temperature | 20-32°C |
Humidity | 40-60% Non-condensing |
| Available Media | Polyester,cotton,silk,linen,textile material |
| Media Handle | Automatic feeder,automatic take up |
| File Format | TIFF,JPEG and other common image formats Control software Chinese version and English Version |
Weight | Net Weight : 788kg Gross Weight : 986kg |
| Rip Software | Onyx |
| Working Process | Windows XP / Windows 7,8 |
Printing Resolution And Speed:
| Resolution | speed |
| 720 x 360dpi (2pass) | 40m²/h |
| 360 x 1080dpi(3pass) | 32m²/h |
| 720 x 720dpi(4pass) | 22m²/h |
| 720 x 1080dpi(6pass) | 18 m²/h |
| 720 x 1440dpi(8pass) | 12 m²/h |
Available Ink and Material:
1) Sublimation Ink (water based): mainly used in polyester fabric.
Completed fabric can use to make all kinds of flags,banner shows
and for home decoration
2) Reactive Ink:For cotton,linen and silk etc.
After printing and heating,the materials can use to make clothes
and scarf.
3) Pigment Ink:For all kinds of textile fabrics.
After Sales Service:
1. One year warranty
2. Provide 24 hours online service.
when you first time operate the machine,our engineer will be online
to guide you how to operate machine.
When your machine gets any problem, our engineer will help you to
solve it through remote control.
3. If necessary,we can send you new spare part.
Application:
Home Decoration:Print on polyester fabric to make windows curtain
and Table cloth,sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up
banner,tear drops banners,and so on.
Machine Details:
