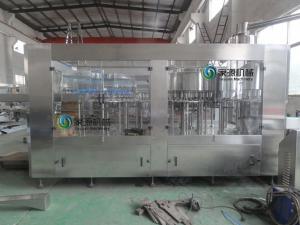

Small Bottle Filling And Capping Machine With Purified Water
Factory Design
Description
This machine is a filling capping 2-in-1 monblock, it is suitable
for mineral water, purified water, spring water, juiced beverage
and other non-carbonated beverage production. it's capacity is
about 4000 bottles per hour (500ml PET bottle).
Working process
The bottle enters into the rinsing part of two-in-one machine
through air conveyor. The gripper installed on the rotary disk
catches bottle and transfer them to the filling part through poking
bottle starwheel. The bottle that enters into the filler is hold by
neck holding plate. The filling valve acted by the cam can realize
up and down. It adopts pressure filling way. The filling valve
opens and begins filling when it moves down and touches the
bottleneck, the filling valve move up and leave the bottleneck when
it finishes filling, the full bottle is transferred to the capping
part through hold neck transition poking wheel. The stop screwing
knife holds the bottleneck, keeps bottle upright not rotating. The
screw capping head keeps in revolution and autorotation. It can
finish a whole capping course including catching, pressing,
screwing, discharging through the action of the cam. The full
bottle is transferred to bottle outlet conveyor to the next process

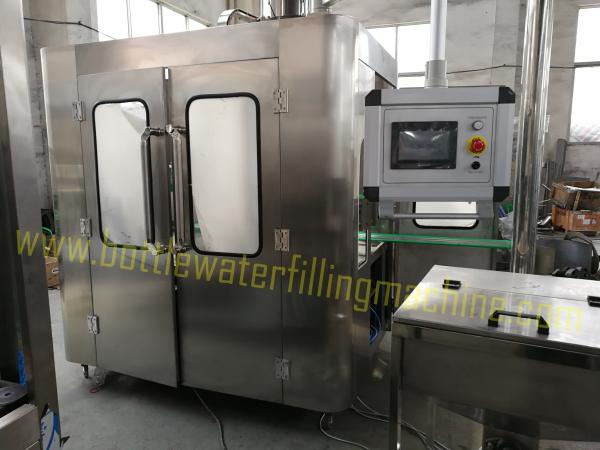

through starwheel. The whole machine is enclosed with windows, the
height of enclosed window is higher than the peak of the 3 in 1
machine, in the bottom of the enclosed window has return air
outlet.
Product Details

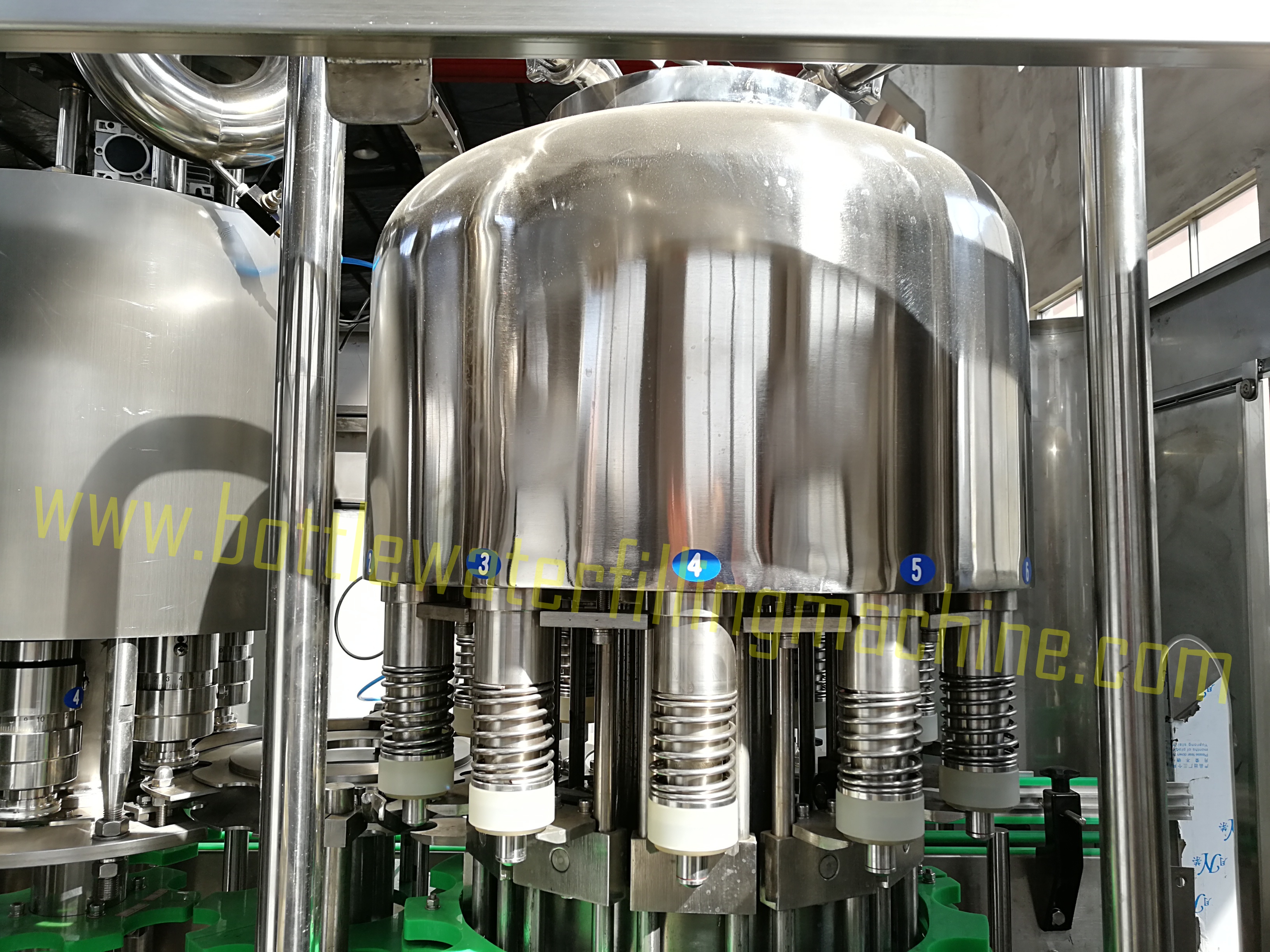

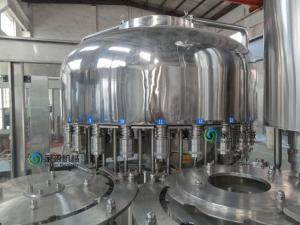

Filling part
1). The washing bottle, filling, sealing are connecting with the
thumbwheel card bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling method is gravity filling.
4). Filling valve manufactured by SUS304.
5). The filling valve structure design is reasonable, the filling
quantity is accurate.

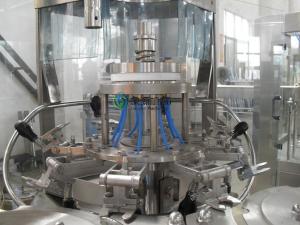

Capping part
The capping machine is the highest precision in 3-in-1 unit
machine, on the reliability of equipment operation, has enormous
influence on the defective rate of the product.
Introduced the world's most advanced Italian AROL capping machine
technology, combining with the filling machine production
experience improvement, and ask college of Shanghai Jiaotong
university mechanical engineering institute of electrical and
mechanical design and automation technology of experts and
professors to help design.

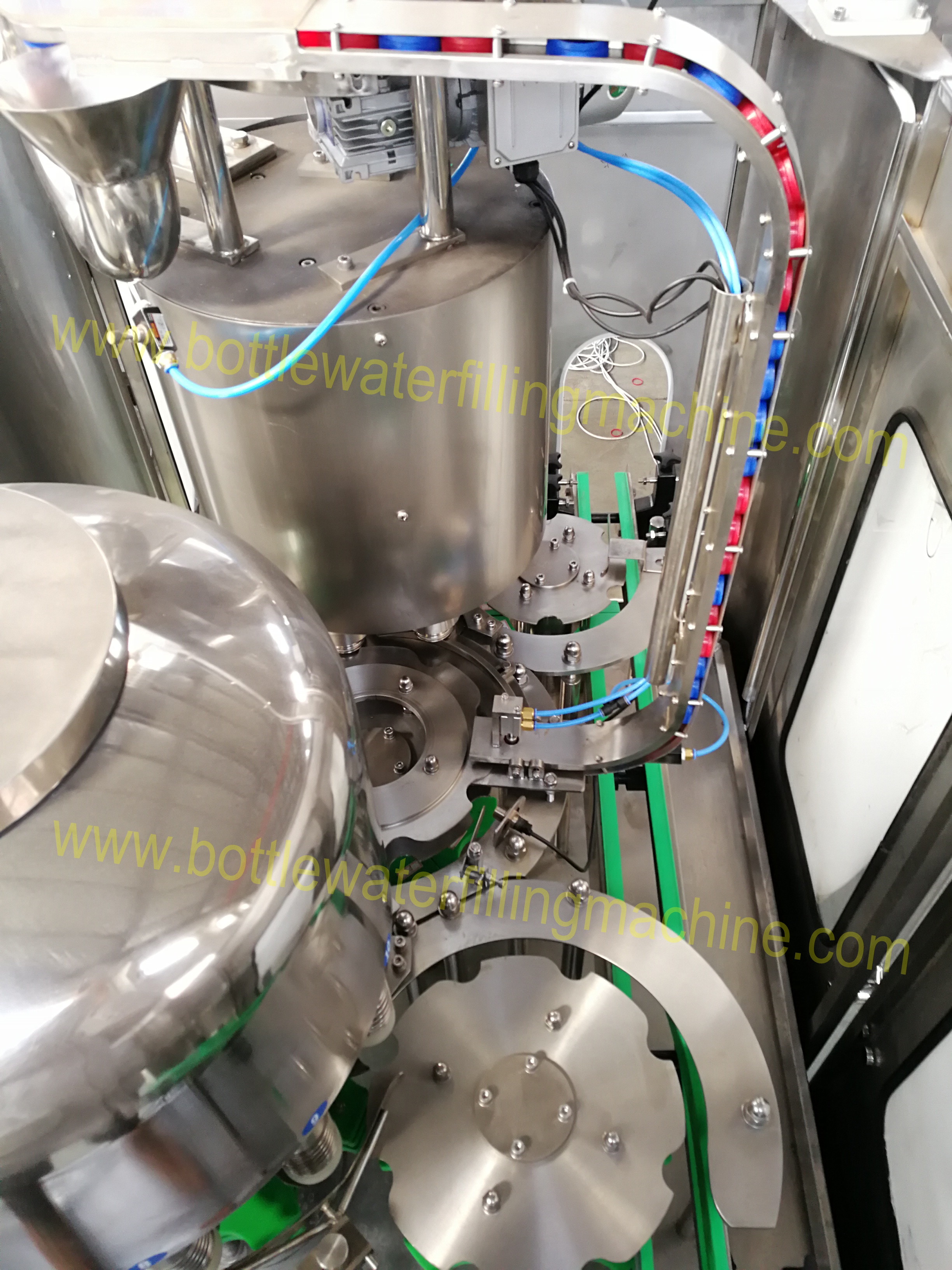

inner look
Our rising filling capping 3-in-1 capacity
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) | Diameter:Φ50-Φ108 Height:150-320 |
| Rated production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
Water treatment system
Raw water tank—raw water pump—multi-medium filter--active carbon
filter –water softner (Sodium Ion Exchanger)—precision filter—RO
mainframe(including chemical cleaning device)—ozone
generator—finished product water tank
we can supply all these plants, pls have a furthur learn...
