120 Degree V-shaped Wedge Wire screen Panel For Long Linear Floor
Drain
Details of wedge wire _______________________________________________________________
1.The angle
(1)The angle between top bar and low bar is 90 degree
(2)The angle at each corner is 90 degree
(3)The angle inside each corner is 90 degree
2.The top wire.
It's nearly perfect straight after welding.For a 1800mm product,The
STRAIGHT tolerance is<0.5mm.(Notthe size tolerance).
It's very hard to achieve for aweldingproduct.The advantage is
whatever how long the projectis,it lookslike there is only one
grate.Cause each line connectsanotherexactly.
3.The welding point
Our welding point is very neat and clean.It needs a very high
welding skill to make this happen.We do training for each workers
hand by hand to ensure the quality
4. specification of wedge wire screen panel
Product name | wedge wire screen panel for Bathroom Long Linear Floor Drain /
Shower Drain |
Material | Stainless Steel 304/316 |
Width | 68/100mm |
Height | 70mm |
Length | 300/600/650/700/800/900/1000/1200mm or customized |
Outlet | 45/50/65/71/76/80/84/90mm |
Surface | Brushed / Polished / Chrome |
5. advantage of wedge wire screen panels
- Drainage fast , always keep the bathroom dry and clean, enhance the level of non-slip surface
- Increase three dimensional sense of space ,do not use stone to separate dry and wet areas again ,and don't use any other Stainless Steel Linear
Drain
- Save the time of construction, using the drainage of same gradient, construction of simple ,maintain tile integrity and beautiful appearance .
- Security increased ,it is a trouble free access for some people
whose action is inconvenience as it do not need the stone to separate dry and wet
areas
- Beautiful appearance ,to be part of the bathroom , become a kind of elegant decoration

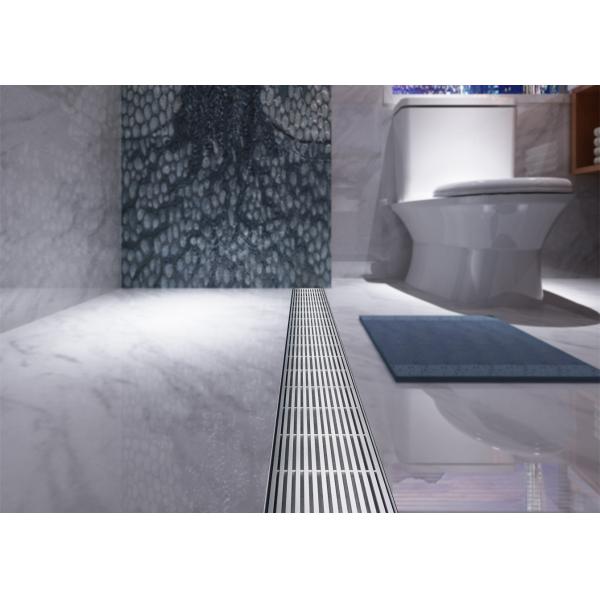

images of wedge wire screen panels
___________________________________________________________________________________
Application of Wedge Wire Screen Panels
———————————————————————————————————————————————
Public walkways · Threshold · Bathroom drainage· Driveway grates· Shopping centres· Pool surrounds
· Balconies · Tree grates
huihao company
