Reverse Osmosis Water Treatment / Water Purification System 2000L/H

Reverse Osmosis Water Treatment / Water Purification System 2000L/H

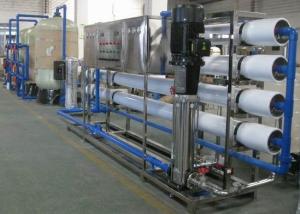

Reverse Osmosis water treatment machine: RO-1000I(2,000L/H)
Multi-stage media filtration for pre-treatment, and RO unit for main filtration, polishing treatment of UV system and Ozone system.
General features:
1) RO system automatic control for flush and backwash. with Auto water softener.
2) C.I.P. chemical cleaning system for RO membrane.
3) Chemical dosing port for unti-scaling and PH adjustment for optional choice.
4) U-PVC pipe and fitting for low pressure part, SS304 pipe for high pressure part.
5) LG PLC control system with water level control, Touch Screen Avialable
6) Auto pump protection for electric shortage, pressure protection, water level protection.
Water application:
1) Suitable water source: Tap water, surface well water
2) Inlet water TDS limit: Below 2000ppm (for other water source, please provide us water report for detailed analysis for choosing other brand of RO membrane)
3) Water recovery ratio: 70%
4) RO membrane salt rejection ratio: 99.6%
5) Treated water TDS range: 30 to 50ppm. (Bottled water standard)
General parameters:
1) General power: 4.75kW 380V AC, 8.8A, 50Hz
2) RO membranes: CPA24040 8items (1 grade)
3) Multi-phases pump: CDL4-220/4.0kW 1 item
4) Pretreatment filter: 500 x 1, 200 x 1.5 2 items
5) Ion exchange resin tube: 450 x 1, 650 1 item
6) Auto softener controller: 180/440 1 item
7) PP sediment membranes filter tube: 90 x 1, 000 5items
8) Booster pump: BLC70/0.75kW 1 item
9) Active carbon filter: 125kg
10) Cation: 100L
11) Quartz sand filter: 250kg

Option Solutions
1) RO membrane: Filmtec brand
2) Pump: Grundfos
3) Ozone system
4) UV sterilizer
5) SS304 water storage tank
6) Chemical dosing system
