    Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab

    Ask Lasest Price
    Brand Name : HORIZON
    Model Number : Table form
    Certification : SGS
    Price : Pls check with HORIZON
    Payment Terms : L/C, T/T
    Supply Ability : 10000 M2 per month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab

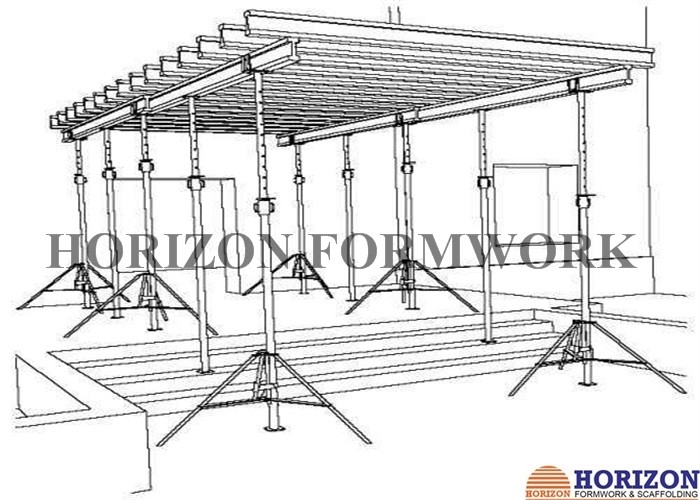

    Flex-H20 Slab Formwork System With Universal Components for Floor Concrete

    Flex-H20 slab form is a quite flexible timber beam system enabling you to complete any kind of slab pouring very easily, any length, width or thickness. There is no restriction for your applications in any way, but allows you all the versatility you need for perfect concrete work on site.

    All the Flex-H20 slab form components are multiply used in HORIZON’s formwork systems. The H20 timber beams, props are well adapted to each other. Combined with 4-way fork head, tripod, supporting head, Flex-H20 is one of the most versatile timber beam formwork systems.

    In order to ensure the safety, guardrails are equipped on the H20 beam at edge of slab.


    Flex-H20 Slab Formwork Components:

    ComponentsDiagram / photoSpecification / description
    Timber beam H20

    Water proof treated

    Height: 200mm

    Width: 80mm

    Length: as per table size

    Floor Props

    Galvanized

    As per proposal design

    HZP 20-300, 14kg

    HZP 20-350, 15.8kg

    HZP 30-300, 17.6kg

    HZP 30-350, 20.3kg

    4-way head H20

    Galvanized

    Length: 220mm

    Width: 145mm

    Height: 320mm

    Folding tripod

    Galvanized

    For holding floor props

    8.5kg/pc
