High Speed Wood Plastic Composite Production Line / Pvc Wpc Profile
Extrusion Line
Wood Plastic Composite Production Line / PVC WPC Wood Plastic
Composite Profile Exfer Machine
Quick detail:
PVC wood plastic foam plte Extrusion Line collects the advantages
of wood and plastic. It not only has appearance of natureal wood,
it but also overcomes shortcoming of wood, it has good processing
peformance wihch is similar to wood, it can be sawed and nailed. It
can be finished with woodworker tools. Its fixed force is clearly
stronger than normal wood material. It has physical
characteristics, such as resistantance to compression, resistance
to impact and others wihch are similar to hard wood. And its
durable function is clearly better than normal wood. Wood plastics
material and its products can be resistance strong acid and alkali,
water proof, corrosion resistance, beside, germ can not breed on
it. It is not moth-eaten it can be aging resistance, static
electricity resistance.
Description:
1. Wood Plastic Composite Extrusion Line
This production line is composed of Conical Twin-screw Extruder,
Calibration Table, Haul-off, Cutter, Stacker.
This line could produce PVC door&window profile, PVC foamed
profile, etc. By changing the Screws, Barrels&Moulds.
2. Details of wood plastic composite extrusion production line
1. The machine is used to produce PVC wood plastic composite
products, PVC profile etc;
2. Applied materials: PVC+wood powder, PVC powder material;
3. Features and advantages:
(1) It could produce PE, PP, PVC wood plastic profile, high
additive amount of wood powder & plant fiber (max 50-75), strong
adaptability, could process PE, PP, ABS, PS etc at the same time;
(2) This is our company's technique-matured machine model, we could
supply overall technical support from aspects like raw materials
recipe, production technology, mould forming etc.
Specifications:
Work flow and detailed information:
| Feeder | • To feed material into extruder; |
| Extruder | • World famous brand electrical component such as
Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface. |
| Die head | • 3Cr13/3Cr17 material
•Complete set include extrusion die head, calibrator and cooling
tank
• Apply to PVC wood-plastic foamed and PE PP wood-plastic cold push
direct extrusion process |
| Vacuum calibration table | • Include full set of vacuum and water pump
• Width: 240mm
• Length: 6000mm
• Independent operation panel for easy operation |
| Haul off | • Upper and lower caterpillar is driven separately and speed
control by frequency inverter
• Fast change type pads for easy operation
• Install plate is adopts aluminum material
• Compacting driving by pneumatic |
| Cutter | • Tracking cutter or lifting saw cutter with adopts double station
dust collection system
•Synchronous drivingby air cylinder or servo motor control |
| Stacker | •Stainless steel304 as touching material
•Discharge driving by air cylinder |

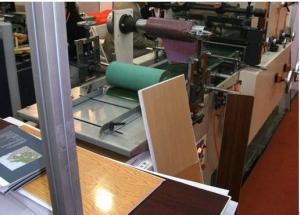

| Embossing machine/Brushing machine/sanding machine/lamination
machine/hot stamping machine | • Surface treatment of final product |
Competitive Advantage:
FAQ:
Q1:Are you a trading company or a manufactory? A1:We are a
manufactory,so we can give u the best service .
Q2:What's your guarantee or the warranty of the quality if we buy
your machines? A2:We offer you high quality machines with 1 years
guarantee . we will give you spare part free in 1 years
Q3:When can I get my machine after I paid? A3:We will deliver the
machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send
our engineer to your side as soon as you get all your machines
ready , for testing and teaching your technicians how to run the
machines.
Q5:How about the spare parts? A5:After we deal down all the things
, we will offer you a spare parts list for your reference.
