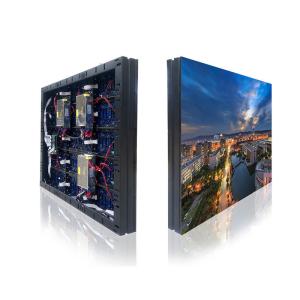

outdoor DIP cheap cabinet china videos display P20 big led screen
We are a professional LED display manufacturer and supplier in
China. Our main products include indoor LED display, outdoor LED
display, indoor rental LED screen, stadium LED display, LED
curtain, LED ceiling light and LED panel light.
P4 LED display P5 LED display P6 LED display P7 LED display P8 LED
display P10 LED display
Other products:
Indoor rental LED screen Vivid color performance. The full screen
achieves high consistency in both color and brightness. High
contrast, high refresh rate, the image is well represented through
the LED screen without any delay phenomenon. Each designated LED
cabinet...
Rental LED screen Traditional electronic screens, such as CRT video
wall, rear projection video wall, front projection screen, plasma
display panel (PDP), etc., are limited in application due to
insufficient brightness, size limitation and installation
difficulties...
Stadium LED display For outdoor stadium video screens, we use
visual pixel technology to achieve better performance of vivid
video display. For indoor sports video screens, we use SMD 3-in-1
technology with wider viewing angle, higher refresh rate...
LED curtain mechanical structure design is highly efficient in
installation and disassembly required for rental and stage
applications. The most special feature of this product is
transparency, which brings different visual effects to the audience
by changing the brightness...
Specifications :
| outdoor DIP P20 |
| Resolution/mm | 20 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 2500/m² |
| Module resolution | 16x8 |
| Module size/mm | 320x160mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | static full color |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
1), Warranty Period:
All of our products have 12 months warranty.
also will send a part of the accessories along with goods.
2), After-sales service
Excellent service after sale, If there is any problem with the
product (without
improper operation and outside force) , during the first year,free
parts and after service will be provided.Professional service will
be provided permanently.
3),Payment Terms:
T/T, Western Union, Paypal, Money Gram,L/C
4),About MOQ:
One piece is acceptable for the trial order, we welcome customer to
test and evaluate our products.
5),Package:
International standard carton packaging or flight case as your
requirement, using the EPE for safeguard, they will protect the
light not damage.
6),Delivery Time:
For sample orders,3-5 working days after receiving the payment.
Big order depend on the quantity :Under 1000 pcs,10-20 days
normally.
More than 1000 pcs,20-35 days.
7),Shipment:
DHL.UPS,FEDEX,TNT,AIR,SEA.We will chooe the best and most favorable
way according to your order quantity.
