Outdoor Summer Cooling humidifier High-Pressure Water Misting
System Water Spray cooling Mist nozzles
About Us:
At Qingdao Ucloud Fog, you’ll find a range of humidification
systems that are suited to a variety of
different environments and applications. Whether you need a
commercial humidifier, industrial humidifier,
wine cellar humidifier or any other humidification system, Smart
Fog will engineer a solution to fit your
exact needs.
Air Conditioner Cooling pad for the chicken farm and house with CE
and reasonable price
High Pressure Water Spray cooling Mist nozzles Cooling humidifier
High-Pressure Spray Machine Misting-System

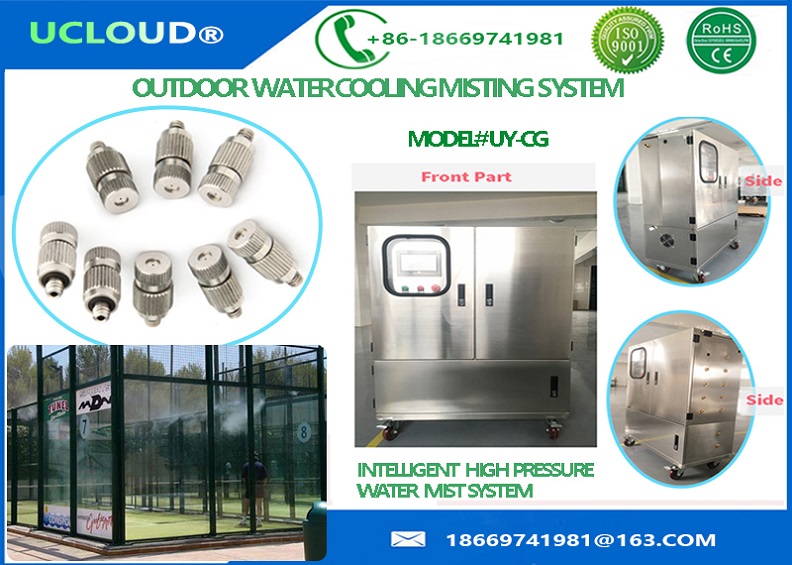

Outdoor Summer Cooling humidifier High-Pressure Water Misting
System Water Spray cooling Mist nozzles
Working Principle
The Ucloud ® high-pressure water misting systems(UY-CG-A)use the
plunger pump to operate the water pressure between 800 and 900 psi
(pounds per square inch). Then the pressured water goes though the
specially designed nozzles to create the fine mist fog. The systems
will work very effectively in both low and high levels of humidity.
Even when the humidity exceeds 90%, the effects of the system will
be felt with the rapid drop in temperature and make you feel cool
and more comfortable. High Pressure Systems create the most BTU's,
because the systems produce smaller mist and creating more cooling
evaporation.
As the micron water droplets flash evaporate they pick up heat from
the air, which significantly drops the temperature between 25 and
35 degrees Fahrenheit, without making you wet.
Large spray volume High pressureatomizing spray fog system Water
Spray cooling Mist nozzles
High Pressure Water Spray cooling Mist nozzles Cooling humidifier
High-Pressure Spray Machine Misting-System
Large spray volume High pressureatomizing spray fog system Water
Spray cooling Mist nozzles
Greenhouse Cooling humidifier High-Pressure Spray Machine Misting
System Water Spray cooling Mist nozzles
Intelligent Control Mode, easy to operate and in high safety.
- Touch screen, easy to operate.
- Separate humidity control pipe for each area.
- With a Humidity & Temperature database, can support for printing
- High pressure, low pressure, Water leakage, power leakage Shutdown
protection.
- Multi-modes way of control.
High efficiency, low cost, Low Noise
- To atomize 1L water per hour only need 4W power.
- Noise ≤60Db
- Max. spraying volume 2400kg/Hours
Large spray volume High pressureatomizing spray fog system Water
Spray cooling Mist nozzles
Outdoor Summer Cooling humidifier High-Pressure Water Misting
System Water Spray cooling Mist nozzles
Main Features
1. Fine and even fog:The high pressure misting nozzles can create 5billion droplets with
the average particle size between 5 to 20 microns. With optimal
humidification and cooling effect.
2. Cost Saving: To atomize 1kg of water need only 4W power. 1% of the power for
the traditional electric style humidifier and 10% of power for the
air-water mode of humidifier.
3. Steady Status:High-pressure water misting system, the host body part with
imported industrial piston pump, can be 24 hours continuous
operation. No power vulnerable parts for the nozzle and water mist
dispenser. Can be used in high dust environments and will not be
easily damaged.
4. Safety: Automatic pressure-relief function can release the high pressure
in the pipes when the system stop working to avoid the water
dripping problem. Automatic water and power shortage alarm system
to avoid the high pressure water pump getting damaged.
5. Spraying Volume:From 50kg/h to1500kg/h,intelligent control with no extra people to
manage the system.
6. Variable frequency machine:Automatically water supply in constant pressure. Can automatically
adjust the water pressure in different areas accordingly to the
operate and close status to assure the safety for the water pump
and pipes.
7. New Technology:To avoid the accumulated water, precipitation, and moss growth
problem in the pipe, and also can protect the spray effect of the
spray nozzle. All nozzles with water-dripping-protect function, the
nozzles have no water dripping problem.
Large spray volume High pressureatomizing spray fog system Water
Spray cooling Mist nozzles
High Pressure Water Spray cooling Mist nozzles Cooling humidifier
High-Pressure Spray Machine Misting-System
Main Applications
- Tobacco industry: Keep the optimal relative humidity, to prevent
damage to the tobacco leaves, to ensure that the tobacco moisture
content in the storage of alcoholization process.
- Coating Industry: Keep the humidity to increase the paint adhesion,
to avoid paint off, paint peeling, and paint plastering problem.
Dust suppression and eliminate static electricity.
- Electronics Industry:Semiconductor components factory, LCD factory,
PCB plant, IC test plant, SMT workshop and other humidity control
and eliminate static electricity.
- Printing industry:Eliminate static electricity and keep humidity to
make sure the paper does not shrink and do not jam. To Improve
production speed and efficiency.
- Textile Industry:Keep the humidity to increase the moisture regain
rate of yarn and fiber. Eliminate static electricity, reduce the
yarn broken rate and improve the product quality.
- Plastic Industry:Humidification in the plastic injection molding
plant and plastic making plant. Eliminate static electricity.
- Livestock Industry: Simulation of the natural environment, do the
humidification and disinfection for the livestock, birds and other
large-scale farming.
- Mushroom Farming:Humidity adjustment to promote the growth of
mushroom, to ensure the productive stability.
- Fruit and vegetable Storage:To keep fruits and vegetables crisp,
color, flavor, to prevent dehydration, withered, prolong aging,
reduce rot problem.
- HVAC industry: central air conditioning supporting humidification
and eliminate static electricity.
- Outdoor Cooling: Large public outdoor spaces such as airports,
railway stations, parks, schools, high pressure water misting
system is the ideal cooling solution, in the evaporative process,
the atomization of water to absorb the heat, to achieve cooling
effect, 100kg of water in the evaporation can absorb 68kw of heat
from the air.
Large spray volume High pressureatomizing spray fog system Water
Spray cooling Mist nozzles
Installation Diagram
(1) inlet valve (2) Water filter (3) Humidifier (4) Computer
Control System
(5) high-pressure control valve (manual or electric) (6) Mist
Nozzle
(7) High-pressure Tee joint, Cross (8) High pressure pipe (9)
Plastic wire rope
(10) Temperature and humidity sensor (11) Chiller (optional) (12)
Ion water softener
(13) High pressure check valve (14) High pressure electric valve
discharge system
Stainless Steel High Pressure Water Spray cooling Mist nozzles for
Textile humidification
High pressure water spray misting fog system High Pressure Water
Spray cooling Mist nozzles
The Double Water Pump Mode:
Intelligent Control Mode, easy to operate and in high safety.
- Touch screen, easy to operate.
- Separate humidity control pipe for each area.
- With a Humidity & Temperature database, can support for printing
- High pressure, low pressure, Water leakage, power leakage Shutdown
protection.
- Multi-modes way of control.
High efficiency, low cost, Low Noise
- To atomize 1L water per hour only need 4W power.
- Noise ≤65Db
- Separate power supply,separate control,timing switch
- Independent parameter setting, maintenance prompt, fault record
Large spray volume High pressureatomizing spray fog system Water
Spray cooling Mist nozzles
Technical Parameters
| Model No. | UY-CG-A/B/C |
| Region No. | Max. 12 separate regions |
| Spraying Volume | 1-1500kg/H |
| Power | 1.5-4.0kw |
| Voltage | 380V/50HZ |
| Coverage Area | 500-8000㎡ |
| Control Mode | Screen Touch/Humidity/Time |
| Machine Material | SS304 |
| Humidity Range | ≤80% |
| Temperature Range | ≤60℃ |
| Machine Size | 1200×600×1400mm |
Main Feature:
1. large volume of atomization; even and fine particle size.
2. No blockage or leakage; easy to clean.
3. Double motors with high power and no noise.
4. Durable in use, free from maintenance worries.
5. Easy installation and operation; Move flexibly.
Large spray volume High pressureatomizing spray fog system Water
Spray cooling Mist nozzles
High pressure water spray misting fog system High Pressure Water
Spray cooling Mist nozzles
Stainless Steel High Pressure Water Spray cooling Mist nozzles for
outdoor humidification
===================================================
FAQ:
Q1. How To Order ?
Step 1 : Send an inquiry
Step 2 : Confirm the operating conditions
Step 3 : product recommendation and quotation
Step 4 : sampling
Step 5 : confirm order details and make a payment
Step 6 : proceed with product preparation upon receipt of payment
Step 7 : shipping
Q2. How To Pay ?
We accept the following payment methods
1. T/T (Bank Transfer)
2. Western Union
3. Paypal
Q3. How Do We Deliver ?
1. We ship products through major carriers like FedEx, UPS, TNT,
EMS.
2. Sea shipment service available. (MOQ 1CBM)
Q4. What's The Lead-time ?
| Lead-Time Chart |
| QUANTITY ( PCS ) | Lead-Time |
| 100 | 3 Working days |
| 1,000 | 7 Working days |
| 3,000 | 10 Working days |
| 5,000 | 15 Working days |
| 10,000 | 20 Working days |
Q5. How Long Does It Take To Receive Shipment ?
It depends on where the buyer is located and which service is
chosen.
Guidelines delivery times:
1. Priority Express (FedEx, UPS, TNT) : 1 ~ 3 working days
2. Economy (FedEx, UPS, TNT, EMS) : 3 ~ 9 working days
Q6. How To Track The Shipment ?
On the day we dispatch the shipment we will send a shipment notice
which includes the tracking number.
Q7. What Are Our Product Warranty Policies?
We provide a 12 month guarantee.
During the guarantee period we will replace defective goods and/or
spare parts at our own expense,
only if the responsibility is solid confirmed as ours after
investigation and discussion agreed by both
sides.
Q8. Why Choose Ucloud high pressure water misting Nozzle ?
We've been devoting ourselves to nozzle manufacturing for more than
30 years,
and have been working with top-notch customers from countries
including Japan and many in Europe and North America.
We enjoy a good reputation among existing customers for outstanding
stability
resulting from strict and consistent quality checks and production
controls.
We trust we're fully capable of satisfying your high-end
requirements and meeting your high standards.
Q9. How to contact with us ?
Email: 18669741981@gmail.com
Tel (What's App): 0086-18669741981
Skype: qingdaosjm0319
Stainless Steel High Pressure Water Spray cooling Mist nozzles for
Textile humidification
High pressure water spray misting fog system High Pressure Water
Spray cooling Mist nozzles
