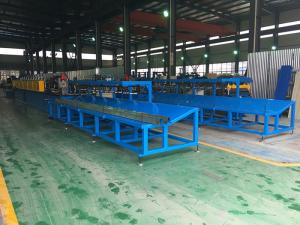

C Purlin Roll Forming Machine Drive by Chain High Speed
main speficication:
1. The Chart of Process Flow
Hydraulic decoiler— Feeding— roll forming— rectify— track cutting— stacker
Specification
| No | | Technical Specification & Remark |
| 1 | 5T hydraulic decoiler or manual decoiler( for choose)
| 5T hydraulic decoiler - Steel coil width: 550mm;
- Internal diameter of coil: variable, from 380 mm to 520 mm
- Maximum coil weight: 5000 Kg;
- Main motor power: 5.5KW
- Hydraulic power: 4kw
5T maunal decoiler - Width of feeding: 500mm
- Capability: 3 Ton
- Bound of expand &fight: 420mm—510mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
|
| 2 | Main Roll Forming Machine
| - Thickness range: 0.8-2.0mm
- Main motor power:18.5kw
- Roller material: Gcr15 surface with chrome, quenching 58-62
- Roll station: 14 stations
- Shaft diameter: ￠65mm material: SAE1045 with quenching and
tempering

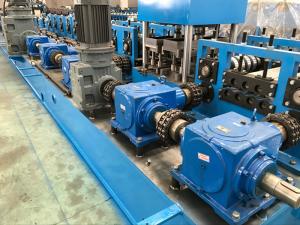

- Chain driving system, 1.5 inch single chain
|
4 | Fly cutting
|
- Machine with fly cutting, when cut, the main machine no stop to get
the high speed.
- Hydraulic power: 11kw
- The fly cutting is powered by servo motor, which power is 3kw.
|
5
|
Correction adjust system
| - Correction of the product sheet to be straight.
|
| 6 |
Hydraulic System
| - Hydraulic power: 11kw
- Working pressure: 20Mpa adjustable
- Solenoid valve: 1 groups
- Hydraulic oil: 46# hydraulic oil
- Quantity :1
|
| 7 | Computer Control Cabinet |
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will
automatically cut to length and stop when required quantity is
achieved
- Length inaccuracy can be amended easily.
- PLC brand: Panasonic
|
| 8 |
Auto stacker
|
|
4. Warranty
- Warranty: 1 year warranty from date of shipment
- Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for
1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the
guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after
installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day
shall be for purchaser’s account if manufacturer’s engineer has to
be send to purchaser’s factory to maintain the machine during the
guarantee period.
5. Installation and training
a. If buyers visit our factory and check the machine, we will teach
you how to install and use the machine, and also train your
workers/technician face to face.
b. Without visiting, we will send you user manual and video to
teach you to install and operate.
C. If buyer needs our technician to go to your local factory,
please arrange board and lodging and other necessary things.
