    Hard Metal Forth Vertical Centrifugal Pump For Delivering Foam Slurris

    Ask Lasest Price
    Brand Name : CNSME
    Model Number : SF/100RV
    Certification : ISO/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 30 Sets per Month
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

    Hard Metal Forth Vertical Centrifugal Pump For Delivering Foam Slurris

    Hard Metal Forth Pumps For Delivering Foam Slurris in Flotation Process


    Introduction:


    Type SF are vertical froth pumps designed to increase the pumpability of frothy slurry, to minimize the entrainment of air in the slurry, and to maximize venting of air in the sump, suction and pump. The principle of operation is similar to that of hydrocyclone separation. Froth pumps, also known as foam pumps, are a kind of vertical tank slurry pumps. They are used for flotation process where froth is innevitable. The material of froth pump wet end parts is also the long known A05, but for the tank, we can coat the steel tank with natural rubber based on your special requirement.


    Specifications:


    ModelSF-100RV
    Discharge4-inch
    Capacity33-187.2m3/h
    TDH5-28m
    Rated Motor Power37Kw
    Speed500-1050r/min
    Max. Efficiency55%

    Construction of Froth Pump:

    Tank feeding froth pump


    Materials of Construction:


    Part DescriptionMaterial
    Volute LinerA05- High Chromium Alloy
    ImpellerA05- High Chromium Alloy
    Spiral ThroatbushA05- High Chromium Alloy
    CasingsCast Iron
    ShaftCarbon Steel
    TankMild Steel

    A05 Chemical Components:


    A05 Material

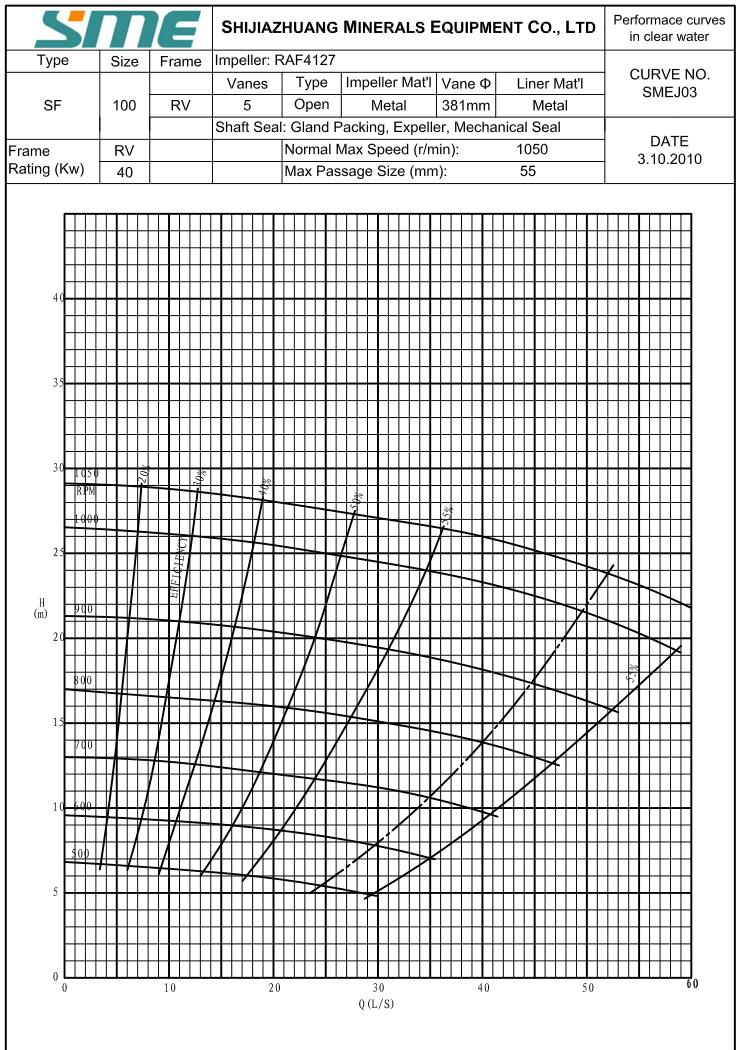

    Performance Curve:



    Projects with SF Frothy Pumps:

    foamy and frothy pumps


    SME Forth Pump Orders:
