Digital Electric Timer Switch For Water Auto Drain Solenoid Valve

    Buy cheap Digital Electric Timer Switch For Water Auto Drain Solenoid Valve from wholesalers

    Buy cheap Digital Electric Timer Switch For Water Auto Drain Solenoid Valve from wholesalers
    • Buy cheap Digital Electric Timer Switch For Water Auto Drain Solenoid Valve from wholesalers

    Digital Electric Timer Switch For Water Auto Drain Solenoid Valve

    Ask Lasest Price
    Brand Name : BRANDO
    Model Number : 720
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 100000 pcs per month
    Delivery Time : 4 to 7 working days
    • Product Details
    • Company Profile

    Digital Electric Timer Switch For Water Auto Drain Solenoid Valve

    Digital Electric Timer Switch For Water Auto Drain Solenoid Valve


    Solenoid valve timers are used for simple automated ON/OFF control for solenoid valves, typically they fit directly between the solenoid valve coil and electrical DIN connector and come with a range either adjustable Time ON (Solenoid Valve Energised) and Time OFF (Solenoid Valve De Energised) or fixed timing cycles or schedules according to specific customer needs.


    Typical Cyclic timers will provide LED Power ON and LED Power OFF indication, Manual Test button and most quality solid state cyclic timers will individually handle a voltage range from 24 volts to 250 volts with a current through put to the solenoid valve of up to 10 Amps.


    Attention also needs to be focused on the Solenoid Valve coil / DIN Connector type and orientation. Obviously as these solid state cyclic timers fit between the coil and electrical connector they need to be the same DIN 43650 standard.


    Technical data of Solenoid Valve Timer:

    Supply voltage
    24V to 240V AC/DC 50Hz/60Hz
    Absorption current
    4mA Max
    Operating temperature
    -10℃ to +50℃
    Class protection
    IP65-EN 60529
    Switch holding voltage
    400V Max
    Switch capacity
    1A
    Inrush current
    10A for 10ms
    Duty cycle
    100%ED
    Switch life
    3x10^8
    Time ON
    from 0.5 to 10s
    Time OFF
    from 0.5 to 45min
    Indicators
    Yellow LED
    Manual override
    Test
    Termination
    DIN43650A

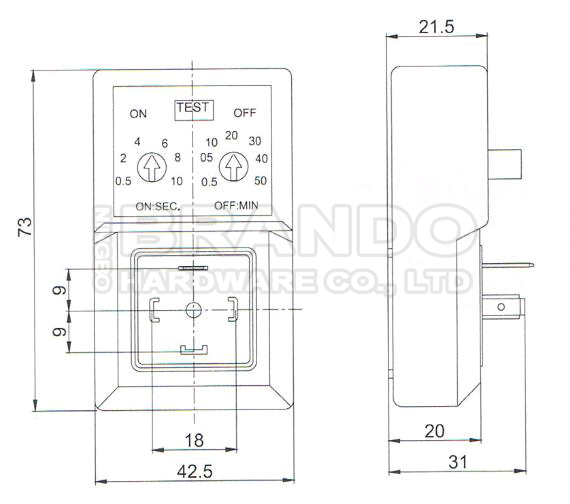

    Dimension of Solenoid Valve Timer:

    Auto Drain Solenoid Valve Digital Electronic Timer 720 Series DIN 43650A 0


    Product video of Solenoid Valve Timer:


    More Solenoid Valve Timers for you to choose:

    IMG_20210926_131213IMG_20210926_131241IMG_20210926_131312Auto Drain Solenoid Valve Digital Cyclic Timer For Air Compressor 4

    More Products for Air Compressor Auto Drain Valve:

    Auto Drain Solenoid Valve Digital Cyclic Timer For Air Compressor 5Auto Drain Solenoid Valve Digital Cyclic Timer For Air Compressor 6Auto Drain Solenoid Valve Digital Cyclic Timer For Air Compressor 7
    Auto Drain ValvesSolenoid Valve CoilSolenoid Valve Armature
