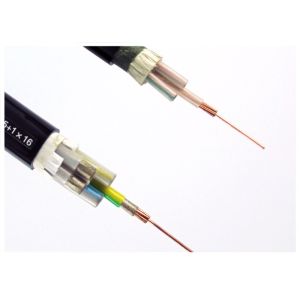

90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions

    Buy cheap 90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions from wholesalers

    Buy cheap 90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions from wholesalers
    • Buy cheap 90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions from wholesalers
    • Buy cheap 90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions from wholesalers
    • Buy cheap 90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions from wholesalers
    • Buy cheap 90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions from wholesalers

    90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions

    Ask Lasest Price
    Brand Name : SHANCABLE
    Model Number : FR
    Certification : ROHS CE KEMA
    Price : 0.38-25.6USD/M
    Payment Terms : 200KM/Month
    Delivery Time : As per schedual
    • Product Details
    • Company Profile

    90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions

    0.6/1kV Fire Resistant Cable with Low Halogen Acid Gas Emissions


    Fire-resistant cable

    Fire-resistant cable can still ensure the normal operation of lines within certain time in case of combustion. It is different from the ordinary flame retardant cable in that in the event of a fire, it may continue electricity transmission. The use of this product will allow high-rise buildings, subways, power plants and other major occasions to have better fire safety and fire rescue capability.

    Operating characteristics
    1. Cable laying temperature: ≥0°C
    2. The highest rated temperature values of PVC insulated cable conductor and XLPE insulated cable conductor are 70°C, and 90°C, respectively.
    3. The highest rated temperature values of cable conductor in case of short circuit (the longest duration not more than 5s) does not exceed 160°C and 250°C for PVC insulation and XLPE insulation, respectively
    4. Under rated voltage of the cable, the fire-resistant cable can maintain 90 min normal operation in is 750°C-800°C flame.
    5. Bending radius: same as ordinary cable.

    ModelNameApplication
    NA-YJV/NB-YJVCross-linked polyethylene insulated PVC sheathed A(B) Class fire-resistant power cable

    Laying in indoors, tunnel and pipeline with refractory requirement.


    NA-YJV22/NB-YJV22XLPE insulation steel tape armored PVC sheathed A(B) Class fire-resistant power cableSuitable for buried laying with refractory requirement, not suitable for laying i n pipeline.
    WDNA-YJY/WDNB-YJYXLPE insulation polyolefin sheath A(B) Class low-smoke zero halogen fire-resistant power cableLaying in indoors, tunnel and pipeline with low smoke and refractory requirement
    WDNA-YJY23/WDNB-YJY23XLPE insulating steel tape armoured polyolefin sheath A(B) class low smoke zero halogen fire-resistant power cableSuitable for buried laying with low smoke zero halogen and refractory requirement, not suitable for laying in pipeline.

    Quality 90 Degree 0.6 / 1kV Fire Resistant Cable With Low Halogen Acid Gas Emissions for sale
