High speed price router cnc 3d wooden door engraving carving 1325 CNC router

Add to Cart

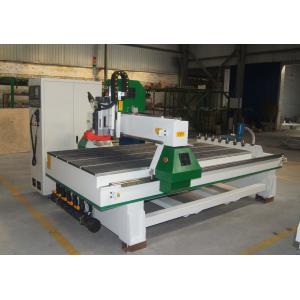

Wood door engraving carving CNC router

Model KC1325
Working size: 1300*2500*200mm
Functions: Engraving on MDF, solid wood, bone, plastic; cut off wood to produce cabinet, door.
Cutting speed 6000mm/min

Model	KC1325
Working Area	13002500200mm
Structure,Table Material	Heavy duty body
Spindle Motor	4.5kw Italian HSD Air Cooling Spindle
Inverter	5.5KW Taiwan Delta
Rotating Speed of Spindle	18000RPM
Working mode	Stepper
Drive mechanism	Gear transmission
Linear guide rails	Square rails(XY axis :Taiwan Hiwin linear rails and Helical rack and pinion,Z axis:Taiwan Hiwin linear rails and Taiwan Ball Screw)
Lubrication	Manual lubrication system
Table Surface	Vacuum and T-slot Combined
Motion positioning accuracy	± 0.02/300mm
Repositioning accuracy	± 0.0254mm
Max motion Speed	4,2000mm/min
Max working speed	10,000mm/min
Engraving Tools	Ø3.175mm, Ø6mm
Dictate Formate	G code, uoo, mmg, *plt
Operating voltage	AC220V/50~60Hz
Control system	DSP control system
Interface	USB
Flash Memory	128M
Dust collector	Yes
Vacuum pump	Water cooling vacuum pump
Soft ware	Type3,JDPaint, ArtCAM software
Packing	3.72.21.8m
Net weight	1400KGS
Gross weight	1500KGS
