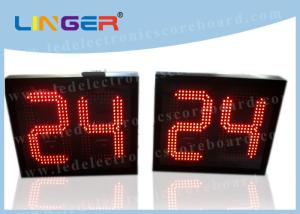

Multifunctional Double sides High brightness LED Shot Clock for
Basketball Scoreboard
PRODUCT PARAMETER |
| Format : | 88 | Color : | Red |
| Display Size : | 370mm x 550mm | Thickness : | 100mm |
| Digit Size : | 12'' 300mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Components Option
Number Height : 6'' / 8'' / 10'' / 12'' / 16'' / 20'' / 24'' / 30''
Digit Color : Red / Green / Yellow / White / Blue
Number Working Voltage : 5V / 7V / 12V / 16V / 18V
Power Source : Power Supply / Power Adapter / Battery
Power Plug Type : USA / EU / AUS / UK / CN
Controller : IR Remote / Wire Controller box / Wireless Controller
Box / Windows Software
Cabinet / Frame : Aluminium Frame / Iron Cabinet
Installation for Frame / Cabinet : Hanging / Mounting / Tripod (
Suitcase )
Package Material : Protection Material and Carton or Wooden Case
Timer Descripition
Specification :
1) Use of the environment: Outdoor and Indoor
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Tripod / With wheels / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 440mm x 620mm x 170mm
Product Design Principles
We always looking the trend of market and technology, develop the
new product with innovation and
special feature. Strong OEM ability and strictest QC system can make sure the mass
production quality
and delivery time.
We are a professional Led Scoreboard manufacturer in China. With
many years of experience since
2002 in producing Led Scoreboard products. Our company has complete quality management systems
and professional production equipment. We can design more than 100
styles by ourselves per year and
also we can arrange production according to customers' ideas and
samples.
Dimensions / Function
Dimension:
| Model | Timer Size | Package Dimension |
| 8'' 200mm | 300mm x 350mm x 100mm | 370mm x 420mm x 170mm |
| 10'' 254mm | 350mm x 410mm x 100mm | 420mm x 480mm x 170mm |
| 12'' 300mm | 370mm x 550mm x 100mm | 440mm x 620mm x 170mm |
| 16'' 400mm | 610mm x 690mm x 100mm | 680mm x 760mm x 170mm |
| 20'' 500mm | 690mm x 760mm x 100mm | 760mm x 830mm x 170mm |
| 24'' 600mm | 770mm x 900mm x 100mm | 840mm x 970mm x 170mm |
| 30'' 750mm | 920mm x 910mm x 100mm | 990mm x 980mm x 170mm |
Timer Function:
1.Display : Seconds
2.Count up : Count from zero to 99 seconds
3.Countdown : Count from 99 seconds to zero
4.Interval timer: interval repeating countdown/ count up timer, max
99 Seconds
Available Option:
* Timer can work by Battery .
Our Services
1.Superior Quality
Our Quality Control team ensures that nothing gets put in stock
which is not of the highest quality standard. We inspect all
incoming goods before they are put on the warehouse shelves.After
all Componets and other electronic parts are finished,they will
arrange to test over 72hours. We finish to install all componets
together,the completely product will be tested by a variety of test
equipments.
2. Faster Response/Delivery
Customer service available on working time (8 : 30 – 17 : 30) from
Monday to Saturday.Orders / Sample sent by courier, such as DHL,
UPS and FedEx, arrive at your doorstep within an average of 3 - 4
days. 5 - 7days to finish air shipment. 2 - 4weeks to finish the
sea shipment. Shipments are insured for successful delivery and
tractable online.
3. Professional, Value for Money
We are directly manufacturer, contact us to order products directly
from us, you can get the best price, must be lower than others who
orders from trading company. The most competitive price is here for
you, of course, good quality also.
4.After Service
We have a lot of experienced hardware engineers, software
programmers will check the feedback from our Customer and found the
solution reply to Customer with drawing or video.If there is no any
technicians can help you at your side, we will explain and teach
you through TeamViewer.
