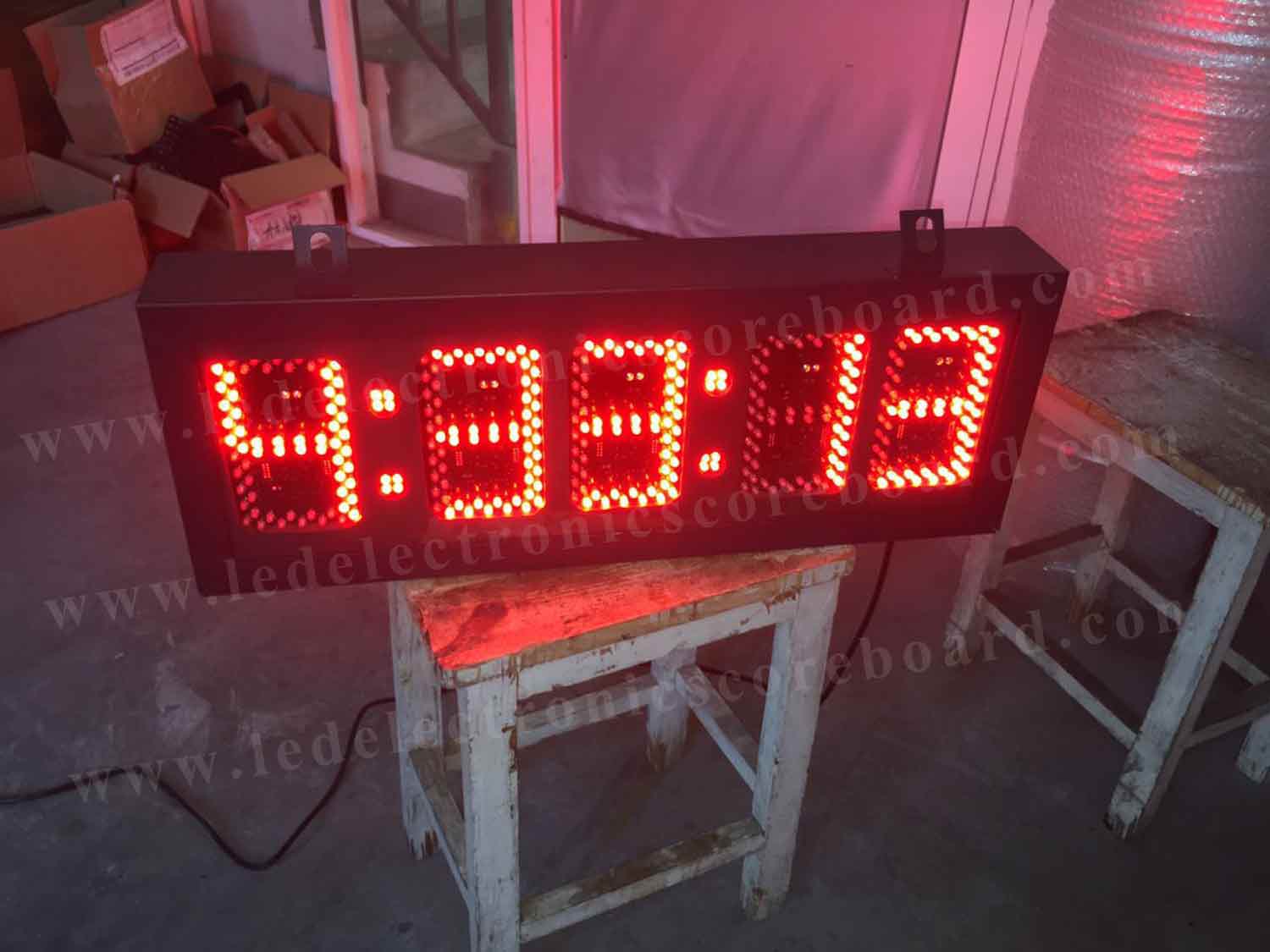

5 Digits in 6'' 150mm Digit Height LED Countdown Timer for inside
PRODUCT PARAMETER |
| Format : | 8 : 88 : 88 | Color : | Red |
| Display Size : | 300mm x 850mm | Thickness : | 100mm |
| Digit Size : | 8'' 200mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Timer Descripition
Specification :
1) Use of the environment: Outdoor and Indoor
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Tripod / With wheels / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 370mm x 920mm x 170mm
Dimensions / Function
Dimension:
| Model | Timer Size | Package Dimension |
| 8'' 200mm | 300mm x 850mm x 100mm | 370mm x 920mm x 170mm |
| 10'' 254mm | 350mm x 1050mm x 100mm | 420mm x 1120mm x 170mm |
| 12'' 300mm | 370mm x 1300mm x 100mm | 440mm x 1370mm x 170mm |
| 16'' 400mm | 610mm x 1670mm x 100mm | 680mm x 1740mm x 170mm |
| 20'' 500mm | 700mm x 1900mm x 100mm | 770mm x 1970mm x 170mm |
| 24'' 600mm | 770mm x 2000mm x 100mm | 840mm x 2070mm x 170mm |
| 30'' 750mm | 920mm x 2670mm x 100mm | 990mm x 2740mm x 170mm |
Timer Function:
1.Display : Hours : Minutes : Seconds (Support 12/24 Hour)
2.Count up : Count from zero to 9 hours 59 minutes 59 seconds
3.Countdown : Count from 9 hours 59 minutes 59 seconds to zero
4.Stopwatch : minutes, seconds and 1/100 of seconds format,zero up
to 9:59:99
5.Interval timer: interval repeating countdown/ count up timer, max
99 rounds
Available Option:
* Install GPS inside as Clock ,then it can search time and Display
AUTO.
* Timer can work by Battery .
* Colon between the digits can be dark and the timer can be used to
display Sports / Game Scores.
* Extra Function to display Temperature.
Advantage
1. We manufactured Led Product over 10 Years.Rich experience with
excellent staff, first-class production
environment ,rigorous and efficient enterprise management system.
2. Customized Design Product is welcome.And MOQ can be 1 Unit.We
will provide the competition price
for Various Led Products.
3. The company has a variety of test equipment to control product
quality like “Light Source Analysis
System”, “High – Low Temp & Variation Chamber”, “Transportation
Vibration Testing Machine”, “Splash
Water Test Equipment” .
4. Flexible Payment – Wire Transfer (T/T), Wester Union, Paypal .
5. Products all certificated, all our products have passed all
test, certification can be provided if you need.
Packing and Logistics
1. Where do you load the goods?
We offer shipment by sea or by air as requested by the buyer. The
sea port we are used : Shanghai Sea port The airport we are used :
Shanghai Airport
2. What is the lead time ?
Usually, the lead time is 7-10 days. 3. Which logistics company do you cooperate with? Our company cooperates with COSCO, APL, CMA, CSAV, K-LINE, MSC and
etc. For courier, it’s up to buyer’s option. We will give
suggestion according to the time table of the steamers and their
services.
Product Design Principles
We always looking the trend of market and technology, develop the
new product with innovation and
special feature. Strong OEM ability and strictest QC system can make sure the mass
production quality
and delivery time.
We are a professional Led Scoreboard manufacturer in China. With
many years of experience since
2002 in producing Led Scoreboard products. Our company has complete quality management systems
and professional production equipment. We can design more than 100
styles by ourselves per year and
also we can arrange production according to customers' ideas and
samples.
