automatically changing tools metal cnc router

Add to Cart

The difference between air cooling HSD spindle & water cooling china produced spindle:

Life time of air cooling HSD spindle 7-8 years.

China produced water cooling spindle 3-5years.

Model	KC1325
Working Area	13002500200mm
Structure,Table Material	Heavy duty body

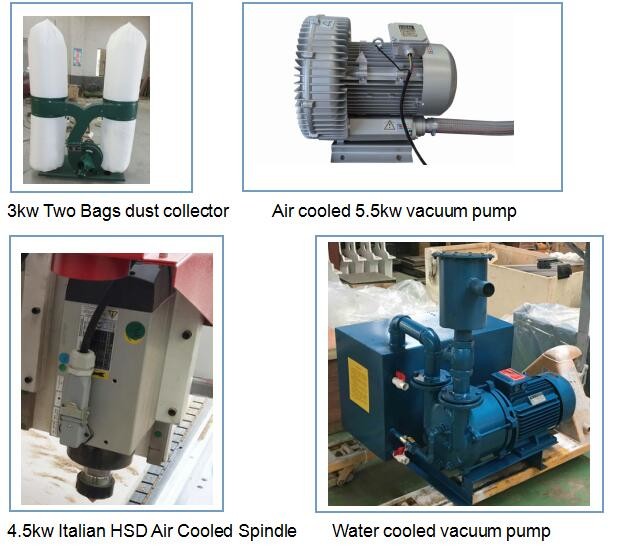

Spindle Motor	4.5kw Italian HSD Air Cooling Spindle
Inverter	5.5KW Taiwan Delta
Rotating Speed of Spindle	18000RPM
Working mode	Stepper
Drive mechanism	Gear transmission
Linear guide rails	Square rails(XY axis :Taiwan Hiwin linear rails and Helical rack and pinion,Z axis:Taiwan Hiwin linear rails and Taiwan Ball Screw)
Lubrication	Manual lubrication system
Table Surface	Vacuum and T-slot Combined
Motion positioning accuracy	± 0.02/300mm
Repositioning accuracy	± 0.0254mm
Max motion Speed	4,200mm/min
Max working speed	3,000mm/min
Engraving Tools	Ø3.175mm, Ø6mm
Dictate Formate	G code, uoo, mmg, *plt
Operating voltage	AC220V/50~60Hz
Control system	DSP control system
Interface	USB
Flash Memory	128M
Dust collector	Yes
Vacuum pump	Water cooling vacuum pump
Soft ware	Type3,JDPaint, ArtCAM software
Packing	3.72.21.8m
Net weight	1400KGS
Gross weight	1500KGS
