    The vertical use of grain storage spiral conveyor stack transfer

    Ask Lasest Price
    Brand Name : hongyuan
    Model Number : XL-6, 8, 10, 12m
    Certification : ISO
    Price : USD 650~1150 Set
    Payment Terms : T/T,Alibaba Trade Assurance
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : Shipped in 2 days after payment
    • Product Details
    • Company Profile

    The vertical use of grain storage spiral conveyor stack transfer

    The vertical use of grain storage spiral conveyor stack transfer



    Product Description

    Flexible Grain Suction Screw Conveyor for Farm Use is a new designed for grain suction, entrucking, stack transfer and storage in village.


    It has the features of small area, light weight, easy movable, high effeciency and low rate of brokage. the small suction machine is widely used for many places with safty and relibality. such as individual farmer, grain professional farmers and agricultural cooperativies.


    Detailed Images

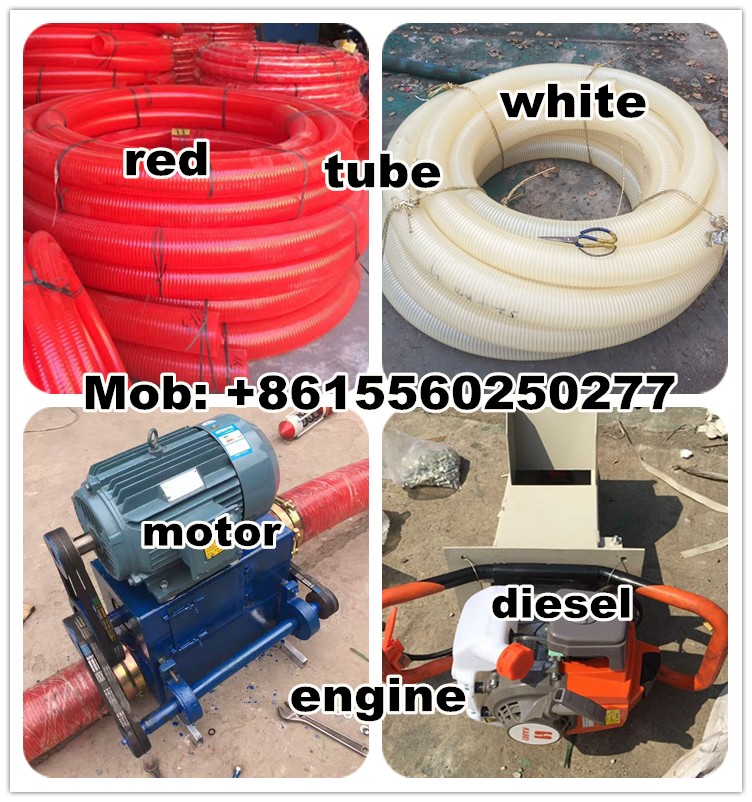

    Structure of screw elevating conveyor

    • Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible.
    • Wear-resisting pipe: The material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor.
    • Driving device: Motor, belt pulley, transmission belt and safe cover.
    • Inlet device and discharge device.


    Product Features & Procedure

    Small and easy-to-operate material handling conveyor for cereal is easy to carry and operated and is one convenient portable grain inhaling suction equipment.

    • It has the feature of small volume, large power, convenient to carry.
    • The power source can adopt the single phase which is applied for home use.
    • Man power saving ideal machine for truck loading.
    • Large capacity at 10-15 ton/h
    • Customized length is supported(6meters,8meters,10meters is available)
    • Lifting height is 3 meters




    packing and delivery


    Technical Data

    Model No.Length (Meters)Pipe diameter

    Loading

    Capacity(t/h)

    Motor phase-power(kw)InstallationStructureConveying height
    XL-100- 66100mm5-8Single phase-220V-3kwVehicle mountedSteel screw blade inside3-4m
    XL-100- 88100mm5-8Single phase-220V-3kwVehicle mountedSteel screw blade inside3-4m
    XL-100- 1010100mm5-8Single phase-220V-3kwVehicle mountedSteel screw blade inside3-4m
    XL-100- 1212100mm5-8Single phase-220V-3kwVehicle mountedSteel screw blade inside3-4m
    XL-160- 66160mm15-20Three phase-220V-4kwVehicle mountedSteel screw blade inside3-4m
    XL-160- 88160mm15-20Three phase-220V-4kwVehicle mountedSteel screw blade inside3-4m
    XL-160- 1010160mm15-20Three phase-220V-4kwVehicle mountedSteel screw blade inside3-4m
    XL-160- 1212160mm15-20Three phase-220V-4kwVehicle mountedSteel screw blade inside3-4m

    Matters need attention
    • Three phase motor cannot reverse running

    • Please do not let the machine running without loading

    • Please do let the machine running with loading

    • Please do not let the machine do the idling running
