high speed cnc wood lathe machines with double turning spindles

Add to Cart

Max. working diameter 160mm or 300mm

Payment term: 30%TT in advance, balance pay before we arrange shipment.

Easy broken parts : lathe cutters

MODEL	KC1530-D
Max. working length	1500mm (option:2000/2500/3000mm)
Max. turning diameter	300mm/160mm (single spindle/double spindle)
Air pressure	0.6-0.8Mpa
Voltage	380V,50HZ,3Phase (customized)
Max. working speed	2000mm/min
Min working length	0.1mm

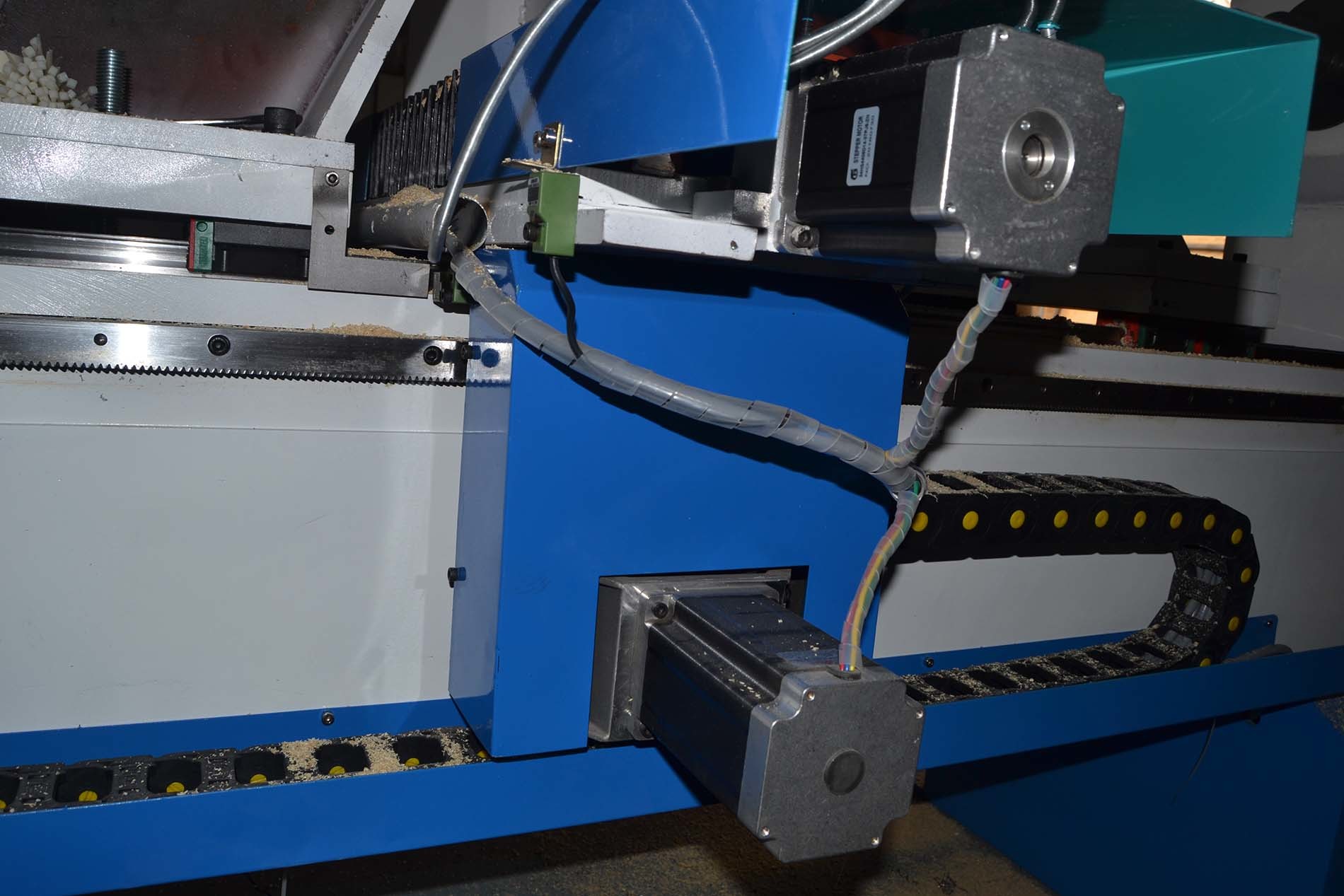

Transmission way	X Z ball screw, Y rack gear drive
Guid brand	HIWIN (Taiwan)
Motor power	4kw
Main spindle motor	3.5kw air cooling

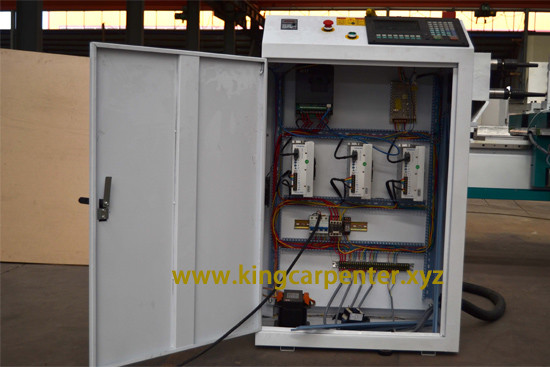

Control system	DSP
Knife material	Hard alloy
Motor stlye	Stepper motor
Drive	YAKO driver
Inverter	beishide
N.W/G.W	1550/1600kg
Packing size	310012001600mm
