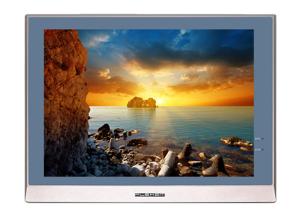

    800×600 Resolution 10.4" Industrial HMI Touch Screen Panel Supporting SD Card

    Ask Lasest Price
    Brand Name : FLEXEM
    Model Number : FE4104S
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Delivery Time : 1-7 business days after payment confirmed
    Supply Ability : 5000 pcs/week
    • Product Details
    • Company Profile

    800×600 Resolution 10.4" Industrial HMI Touch Screen Panel Supporting SD Card

    800×600 Resolution 10.4" Industrial HMI Touch Screen Panel Supporting SD Card


    * 10.4" 800×600 TFT LCD.

    * Metal enclosure and with only 38mm thickness.

    * Industrial Isolated Power Supply module, 4 Serial Ports.

    * USB 2.0 Device Port and high-speed software downloading.

    * Wide temperature, working under -20~70C.

    * Complied with CE.


    Input PowerDC 24V , Input Range: DC 18V~28V
    Power ProtectionProtected From Thunderstrike And Surging , Isolated Power Supply
    Shell MaterialFront Cover Made By Aluminum, And The Surface With Hard Oxide Treatment; Back Made By Stell And The Surface With Baking Finish Treatment
    Operating Temperature-20~70℃
    Panel Cutout260mm×202mm
    WeightAbout 1500g

    1. Power Terminals
    Pin1DC24V
    Pin20V
    Pin3FG
    2.COM1/COM3
    Pin1Rx-(B)
    Pin2RxD_PLC (COM1 RS232)
    Pin3TxD_PLC (COM1 RS232)
    Pin4Tx-
    Pin5GND
    Pin6Rx+(A)
    Pin7RxD_PLC(COM3 RS232)
    Pin8TXD_PLC(COM3 RS232)
    Pin9Tx+
    3.COM2/COM4
    Pin1Rx-(B)
    Pin2RxD_PLC (COM2 RS232)
    Pin3TxD_PLC (COM2 RS232)
    Pin4Tx-
    Pin5GND
    Pin6Rx+(A)
    Pin7RxD_PLC(COM4 RS232)
    Pin8TXD_PLC(COM4 RS232)
    Pin9Tx+
