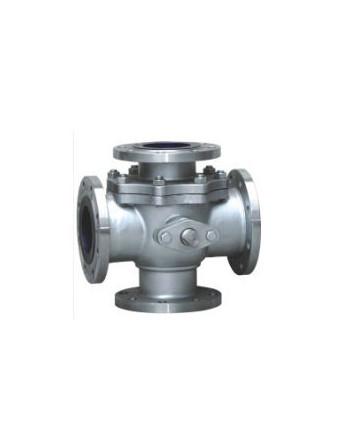

Four Way Ball Valve Steel Ball Valves Trunnion Mounted Type

    Buy cheap Four Way Ball Valve Steel Ball Valves Trunnion Mounted Type from wholesalers

    Buy cheap Four Way Ball Valve Steel Ball Valves Trunnion Mounted Type from wholesalers
    • Buy cheap Four Way Ball Valve Steel Ball Valves Trunnion Mounted Type from wholesalers

    Four Way Ball Valve Steel Ball Valves Trunnion Mounted Type

    Ask Lasest Price
    Brand Name : RTK
    Model Number : Q46F-16P/Q46F-25C
    Price : 200USD
    Payment Terms : L/C, T/T
    Supply Ability : 10pcs/week
    Delivery Time : 7
    • Product Details
    • Company Profile

    Four Way Ball Valve Steel Ball Valves Trunnion Mounted Type

    Four Way Ball Valve Steel Ball Valves Trunnion Mounted Type
    Four-way Ball Valve
    Packaging & Delivery
    packaging Details:Standard export boxsDelivery Detail:10 days

    Specifications

    1. Four way Ball Valve
    2.Standard:ANSI,GB,JIS
    3.Certification:ISO9001-2008
    4.Material:carbon steel,ss
    5.package: wooden box

    Four way Ball Valve

    No.1 Chief features
    1.Full port, floating or trunnion mounted type
    2.Bolted bonnet
    3.Blow out proof stem
    4.Structure improved on api
    5.Opening and with wormgear operator
    6.Available with gear operator
    7.Flanged ends
    8.Butt-welding ends
    No.2 product specification
    product specificationface to facedesign spec.flange endtest&checkmarkingsupply
    ANSI B16.10API1600ANSI B16.5API598MSS SP-25API1608
    API16DAPI16DAPI16DAPI 16DAPI16D
    No3.main part material
    part namepart material
    body/bonnetA-216-WC8A105A352-LC8A351-CF8A351-CF8MA351-CF3A351-CF3M
    ballA182-F304A182-F304A182-F304A182-F304A182-F316A182-F304LA182-316L
    stemA182-F6aA182-F6aA182-F6aA182-F304A182-F316A182-F304LA182-316L
    seatA105A182-F304A182-F316A182-F304LA182-316L
    seat ringPTFER.PTFE
    packingPTFE+FPMPTFE+FPM
    gasketFlexible graphite+PFTE+FPM
    boltA193-B8A193-B8M
    suitable mediumwater,oil,steamnitric acidancetic acid




    Product Tags:

    Four Way Ball Valve



    4 way Steel Ball Valves



    Trunnion Mounted Steel Ball Valves


    Quality Four Way Ball Valve Steel Ball Valves Trunnion Mounted Type for sale

    Four Way Ball Valve Steel Ball Valves Trunnion Mounted Type
