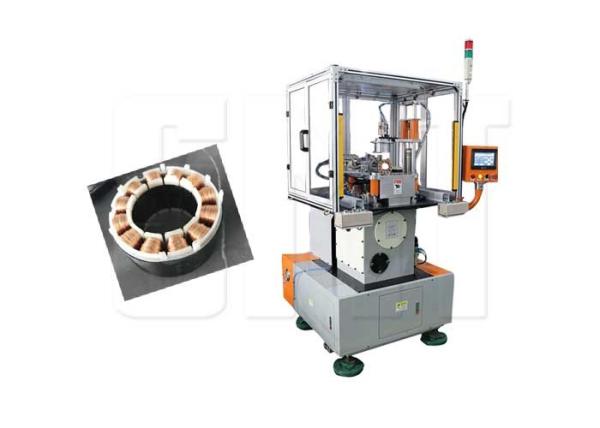

Brushless Direct Current Motor Winding Machine Winding by Wire
Nozzles SMT-NR1807
Can be equipped with 3 needle (Tungsten steel wire nozzle) for
winding together, just one station with outer ring protection. It
can achieve auto wire hooking, cutting, arraying and winding on
stators directly.
(1) Technical Parameters
| Model | SMT-NR1807 |
| Needle number | 1~3 needles |
| Stator OD | ≤Φ180mm |
| Stator ID | ≥Φ40mm |
| Stator stack height | ≤110mm with plastic frame |
| Wire diameter range | Φ0.2~Φ1.2 mm |
| Load winding speed | ≤600 r/min |
| Winding precision | ±0 turn |
| Power | 5.5Kw |
| Weight | 1250Kg |
| Dimension | (L)760×(W)1250×(H)2350mm |
(2) Brief Instruction of Machine
Machine "Brushless Direct Current Motor Winding Machine Winding by
Wire Nozzles" is used for winding electric wires on BLDC stators
automatically and directly.
(3) Main Specifications
1. The machine is suitable for brushless DC in-slot converter
motors in the field of automobile, household appliance and air
etc., like servo motor, fan motor, washing machine motor,
compressor motor and stepper motor, etc.;
2. CNC controls servo motor to achieve high-speed running and
precious location;
3. It can achieve auto winding, arraying, indexing, hooking and
cutting, fault diagnosis function and so on.
(4) Services
Combining years of experience, we can provide high-qualified
machines which are simple operated and easy for maintenance,
including single set machine or whole production line machines.
Before placing an order, we can have a technical discussion if
customers have any doubt. And if customers have any requirement in
design or allocation, we also will try our best to satisfy them.
Besides, our warranty time is one year and during this period,
we’ll offer some spare parts for free if they’re broken due to
quality issue or design issue. Before delivery, we’ll also offer
some wearing parts for free.
When customers have some problems with the machine, inform us and
our after-sales engineers will be in customer’s site in the
shortest time.
(5) Application of SMT Machines
SMT machines can finish slot insulation insertion, coil winding,
inserting, forming and lacing automatically, which are suitable for
various motors of new energy automobile, generator, garden tools,
fans, exhaust fan, compressor, water pump and deep well pump,
household appliance, reducer, BLDC motor and so on.
