    CNC Aluminum Milling Processing Machine

    Ask Lasest Price
    Brand Name : RONGQI
    Certification : CE
    Model Number : SKX-CNC-120
    Price : NG
    Delivery Time : 15 days
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 900
    • Product Details
    • Company Profile

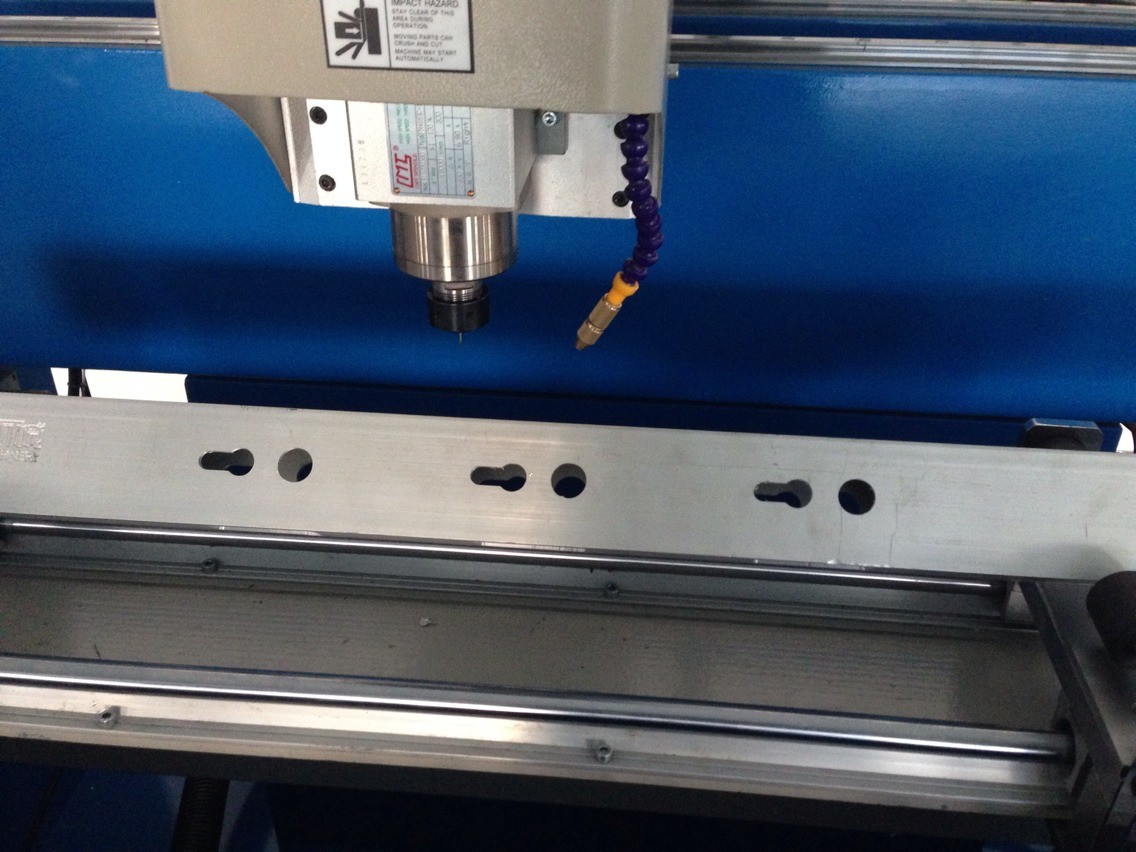

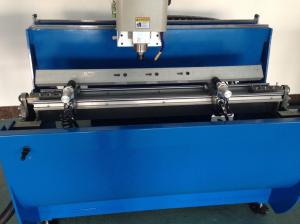

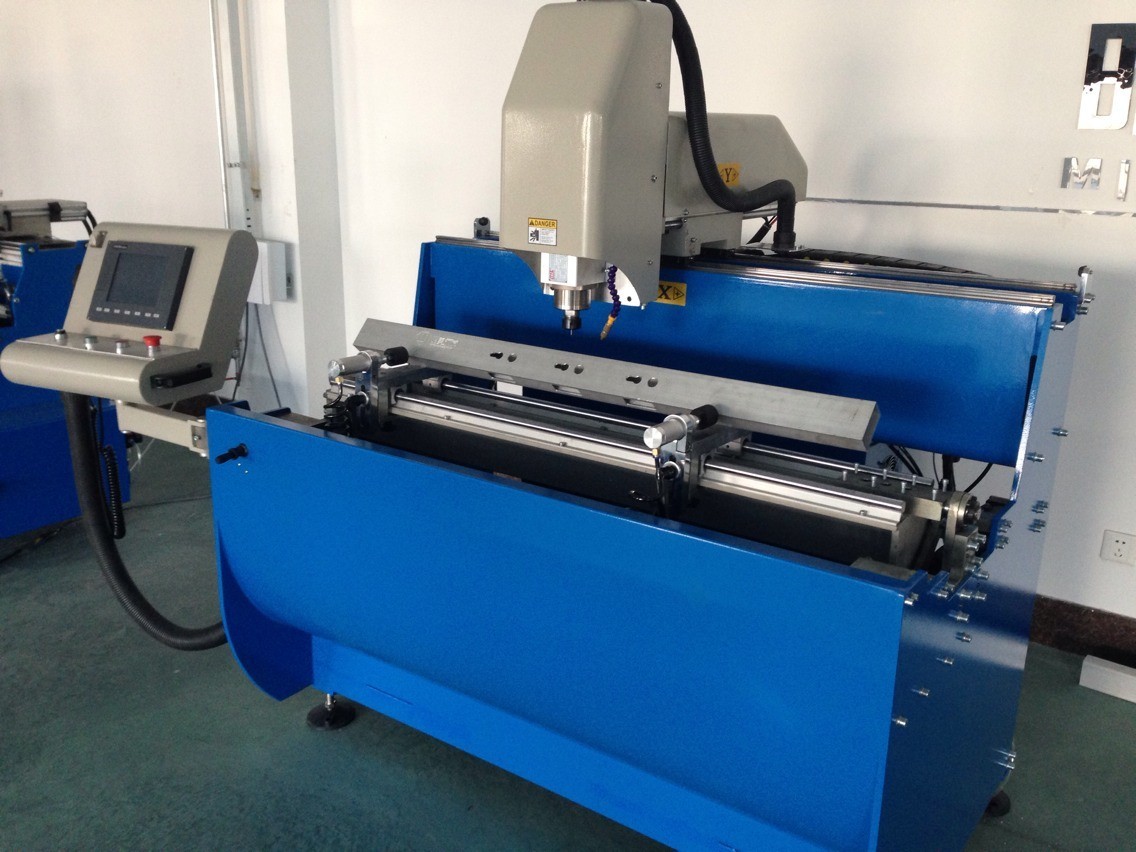

    CNC Aluminum Milling Processing Machine

    CNC Aluminum Milling Processing Machine

    Features:

    1. Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes, plane engraving of aluminum allyoy profiles.

    2. System adopts Taiwan Syntec CNC controller.

    3. Adopting electric spindle : high precision,high safety and reliablity.

    4. X-axis adopts high-precision helical gear and rack;Y and Z axis adopt high-precision ball screw transmission: steady transmission and high precision.

    5. By using programme software to automatically transform and process G code: easy operation: high efficiency and low labour intensity: CNC Aluminum Window Frame Drilling Machine

    6. Workbench can turn 180 °, -90 °, 0 °, +90 °: it can realize three sides processing by clamping one time;It can process deep and special-shaped holes through workbench: high efficiency and precision.

    Technical Parameters:

    Model No

    SKX-CNC-1200

    Air pressure

    0.5-0.6Mpa

    X-axis stroke

    1200mm

    Y-axis stroke

    300mm

    Z-axis stroke

    280mm

    Handle type

    ER25x8

    Processing range

    100x140mm

    Overall dimension

    2200x1500x1950mm

    Weight

    610kgs

    Quality CNC Aluminum Milling Processing Machine for sale
