LQ150X1LAM3 Sharp LCD Panel , custom lcd display tft 304.1×228.1 mm Active Area

    Buy cheap LQ150X1LAM3 Sharp LCD Panel , custom lcd display tft 304.1×228.1 mm Active Area from wholesalers

    Buy cheap LQ150X1LAM3 Sharp LCD Panel , custom lcd display tft 304.1×228.1 mm Active Area from wholesalers
    • Buy cheap LQ150X1LAM3 Sharp LCD Panel , custom lcd display tft 304.1×228.1 mm Active Area from wholesalers

    LQ150X1LAM3 Sharp LCD Panel , custom lcd display tft 304.1×228.1 mm Active Area

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ150X1LAM3
    Certification : iso9001
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3WORK DAY
    • Product Details
    • Company Profile

    LQ150X1LAM3 Sharp LCD Panel , custom lcd display tft 304.1×228.1 mm Active Area

    LQ150X1LAM3 SHARP 15.0 inchwith 304.1×228.1 mm Active Area


    Our Company Strength in LCD Screen Sourcing:

    1. ISO9001 certificated, Factory Direct Supplied
    2. Competitive Price and Short Lead-time
    3. Professional Team with Rich Experiences in LCD screen international trade communication.
    4. Small MOQ Support & Fast Response to Customers
    5. Long Product Life Time
    6. 1 Year warranty for our LCD screen replacements.

    LQ150X1LAM3 Specification

    Panel Size :15.0 inch
    Dot Resolution :1024(RGB)×768 (XGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :85 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.099×0.297 mm (H×V)
    Pixel Pitch :0.297×0.297 mm (H×V)
    Weight :840/870g (Typ./Max.)
    Surface :Glare (Haze 0%), Hard coating (2H), Antireflection
    Active Area :304.1×228.1 mm (H×V)
    Outline Dimension :315.8×243.2 mm (H×V)
    Outline Depth :10.3 (Max.) mm
    Shape Style :Wedge (PCBA Bent, Depth ≥5.2mm)
    Holes & Brackets :Side mounting holes (8-M2) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :TN, Normally White, Transmissive
    Brightness :600 cd/m² (Typ.)
    Contrast Ratio :450 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.313; Wy:0.32
    White Variation :1.50/2.00 (Typ./Max.)(13 Points)
    Sunlight Readable :N

    Our Service

    1. Small quantity also can be provided.

    2. New models can be updated fast.
    3. We have strict QC team to make sure all products are qualified before delivery.
    4. Warranty promise

    5. Sourcing line for different hard disks for different brands.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LK315T3HC1KSHARP31.5"1366×768
    LQ055T3SX04SHARP5.5"1080×1920
    LQ079L1SX06SHARP7.9"1536×2048
    LQ079L1SX04SHARP7.9"1536×2048
    LQ133M1JW08SHARP13.3"1920×1080
    LQ156D1JX02SHARP15.6"3840×2160
    LQ156Z1JW01SHARP15.6"3200×1800
    LQ133T1JW14BSHARP13.3"2560×1440
    LQ047K3SX04SHARP4.7"720×1280
    LS024Q8UC92SHARP2.4"240×320
    LK235D3HA0SSHARP23.6"1920×1080
    LS055D1SX04SHARP5.5"2160×3840

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

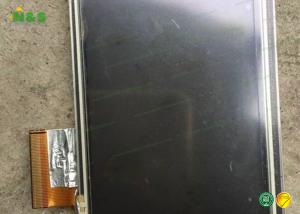

    LQ150X1LAM3 Picture
