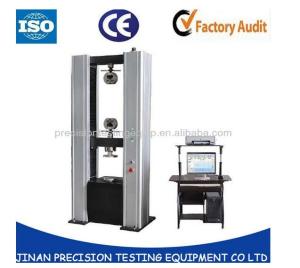

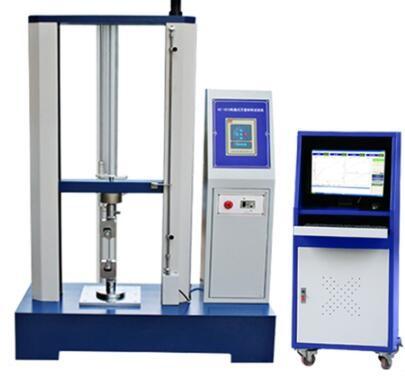

Computer Operated Servo Universal Material Tester is a new material testing machine that combined with the electronic
technology and mechanical transmission, it has accurate load speed,
range of force measurement, Has high accuracy and sensitivity for
the load, displacement measurement and control, it also can be
tested the constant-velocity loading, constant- velocity
displacement. This machine is simple to operate, especially
suitable for controlling quality in production line, This series of
machine is mainly applied to test the non-metallic and metallic
materials which the load is less than 10ton.
Corresponding Standard:
GB/T16491-1996 electronic universal testing machine
Applicable Industry:
Computer Operated Servo Universal Material Tester is widely used in controlling the quality; Rubber & Plastics;
metallurgical iron and steel; manufacturing machinery; electronic
equipment; automobile production; textile fiber; wire and cable;
packaging materials and foodstuffs; instrumentation; medical
equipment; civilian nuclear energy; civil aviation; colleges and
universities; research Laboratory; inspection arbitration,
technical supervision departments; building materials, ceramic;
Petroleum & Chemical; other industries.
Technical Parameter:
| model | Computer Operated Servo Universal Material Tester |
| Maximum load | 2ton,5ton, 10ton, 30ton,option |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | 0.2% to 100% (1 grade)/ 0.4% to 100% (0.5 grade) |
| Measuring accuracy | Display the value ±1/Display the value±0.5 |
| Tester resolution | Max load 1/200000,constant the resolution |
| Load sensor | Basic configurationsensormax load: one Extended configurationcan add more sensors |
| Effective testing width | 400mm(can be widened according to customers requirement ) |
| Effective tensile space | 1000,1200,1400mm can be increased the height according to customers
requirement |
| Range of testing speed | 0.001~200mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
Deformation of measured system according to the requirements | Min span :10mmMax range of deformation 800mm Extended deformation : Min span: 25mm50mm100mm, range of deformation 5mm10mm25mm |
| Accuracy of measured deformation | Tolerance :±0.5 according to requirement of customer to choose the
larger or small deformation |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control,can jog |
| Back to function of testing platform | Manual or automatic operationAfter the test, the moving iron return
to initial position with the highest speed by manual or automatic
operation |
| Overload protection | Overload 10,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 1070×560×2100mm(lenght*width*height) |
| Motor | Panasonic AC servo motor and drive |
| power | 220V50HZ |
| power | 0.75KWdepending on different demand of force, using different motor |
| weight | about 500Kg |
Main Function:
Computer Operated Servo Universal Material Tester mainly applied to test the metallic and non-metallic materials in
tension, compression, bending, shear, peel, tear or two-points
extensions and others., such as rubber, plastic, wire and cable,
optical fiber and cable, safe belt, leather belt composite
materials, plastic profiles, waterproof membrane, steel, copper,
profiles, spring steel, bearing steel, stainless steel (as well as
other high-hardness steel), castings, plate, strip, non-ferrous
metal wire
Main Feature:
Computer Operated Servo Universal Material Tester adopted photoelectric encoder to measure the displacement, the
controller uses the embedded single-chip microcomputer structure
with multi-function software, which combined with measurement,
control, culculation and storage. It can automatic calculate the
stress, rate of elongation (need to add with extensometers),
tensile strength, elastic modulus, automated statistical results;
automatically recorded the biggest point, breaking point, the
designated point value or the rate of elongation; Using computer to
display the dynamic curves in the testing process and process the
data, After testing, it can re-analysis and editing the data by
amplifying the curves through the graphics processing module,
printing reports, product performance reached the international
advanced level.
