Black Auto Arduino Barcode Scanner Module 752×480 CMOS IR Sensor

    Buy cheap Black Auto Arduino Barcode Scanner Module 752×480 CMOS IR Sensor from wholesalers

    Buy cheap Black Auto Arduino Barcode Scanner Module 752×480 CMOS IR Sensor from wholesalers
    • Buy cheap Black Auto Arduino Barcode Scanner Module 752×480 CMOS IR Sensor from wholesalers
    • Buy cheap Black Auto Arduino Barcode Scanner Module 752×480 CMOS IR Sensor from wholesalers

    Black Auto Arduino Barcode Scanner Module 752×480 CMOS IR Sensor

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : RD4500I
    Certification : CE, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 1000 PCS/ week
    Delivery Time : within 5 working days after receiving the balance
    • Product Details
    • Company Profile

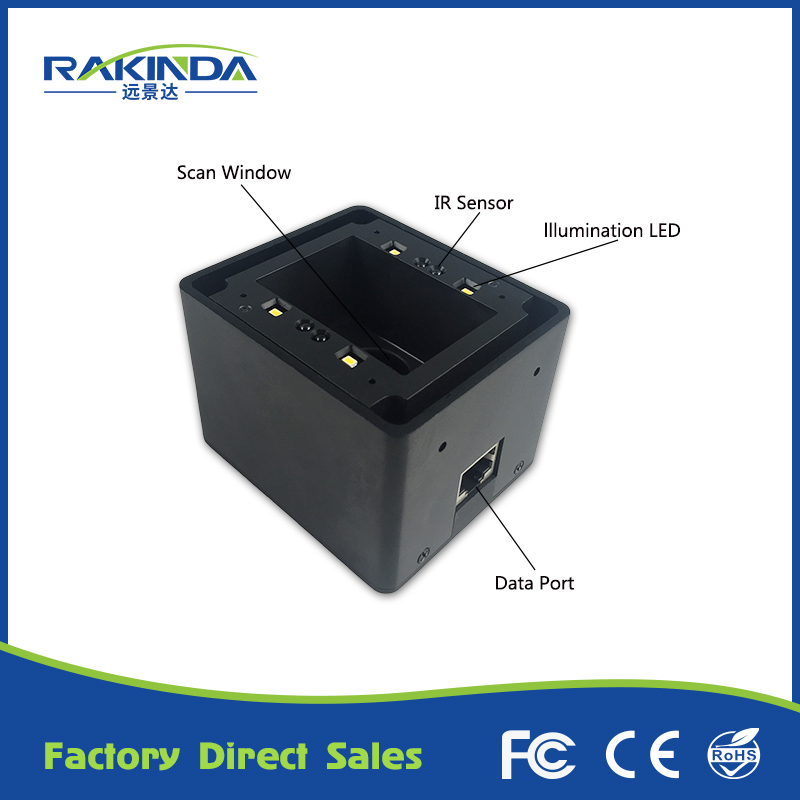

    Black Auto Arduino Barcode Scanner Module 752×480 CMOS IR Sensor

    Black Auto Arduino Barcode Scanner Module 752×480 CMOS IR Sensor


    Snappy On-screen Barcode Capture

    Armed with Rakinda’s fifth-generation of UIMG technology, the scanner excels at reading on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.


    IR Trigger

    The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented. markedly increasing throughput and productivity.


    High-capacity Barcode Reading Capability

    Equipped with a sizable scan window, the scanner has the ability to scan barcodes containing large

    amounts of data.


    Technical Specifications of RD4500I 2D barode Scanner Module

    Performance
    ProcessorIOTC 0370 CHIP
    Image Sensor752×480 CMOS
    InterfaceRS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS)
    Symbologies2DPDF417, Data Matrix, QR Code
    1DEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
    Scan ModeSense mode
    Resolution10mil
    Light SourceWhite LED
    Scan Window38.3mm×60.4mm
    PCS≥30%
    FOVDiagonal: 85°, Horizontal: 63.7°, Vertical: 70°
    Mechanical/Electrical
    Power Consumption1.75W (max.)
    NotificationBeep
    Dimensions (L x W x H)71×61×50mm
    Weight280gF
    Environmental
    Operating Temperature-10°C - +50°C
    Storage Temperature-20°C - +60°C
    Humidity5% - 95% (non-condensing)
    Ambient Light0 ~ 100,000 LUX
    Certifications
    FCC Part15 Class B, CE EMC Class B

    QR code payments

    QR Codes 2D barcode are square bar codes. QR codes have been in use since 1994. Originally used to track products in warehouses, QR codes were designed to replace traditional (1D bar codes). Traditional bar codes just represent numbers, which can be looked up in a database and translated into something meaningful. QR, or “Quick Response” bar codes were designed to contain the meaningful info right in the bar code.


    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
