Mini Kiosk 2D Barcode Scanner Module Engine QR Code Reader RD4500R
RD4500R Mini Barcode Scanner Module Engine 1D CCD 2D Barcode Scanner with
USB/RS232 INTERFACE
Snappy On-screen Barcode Capture
1. Armed with Newland’s fifth-generation of UIMG technology, the
scanner excels at reading on-screen barcodes even when the screen
is covered with protective film or set to its lowest brightness
level..
Durable Metal Housing
2. The scanner uses a durable metal housing, making it ideal for
self-service applications.
Outstanding Power Efficiency
The advanced NLDC technology incorporated in the scanner helps
reduce the power consumption and prolong the service life of the
device.
IR Trigger
3. The IR sensor in the scanner exhibits an improved sensibility in
activating the scanner to scan barcodes as they are presented.
markedly increasing throughput and productivity.
High-capacity Barcode Reading Capability
4. Equipped with a sizable scan window, the scanner has the ability
to scan barcodes containing large amounts of data.
Application Scenarios
5. Self-service cabinets used in e-commerce, express delivery
services and smart homes; ATMs; kiosks; queue machines; lottery
machines; certificate makers.
4500R 2d
scanner-Specification.pdf
| | LV4500 | LV4500I |
|
| Performance | Processor | IOTC 0370 CHIP |
| Image Sensor | 752*480 CMOS |
| Symbologies | 2D: PDF417, Data Matrix, QR Code |
| 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code
128(FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5,
Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar
(RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey,
Plessey |
| Resolution | ≥10mil |
| Scan Mode | Sense mode |
| Light Source | White LED |
| Scan Window | 31.5mm×46.5mm | 38.3mm×60.4mm |
| Symbol Contrast | ≥30% |
| Interface | RS-232, USB |
| FOV | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° |
| Physical/ | Dimensions (L×W×H) | 78.2*67.2*52.3mm | 71*61*50mm |
| Electric | Weight | 300g | 280g |
| Notification | Beep |
| Max. Power Consumption | 1.75W |
| Environmental | Operating Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Humidity | 5%~95% (non-condensing) |
| Ambient Light | 0 ~ 100,000 LUX |
| Certifications | | FCC Part15 Class B,CE EMC Class B |

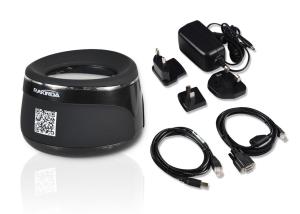

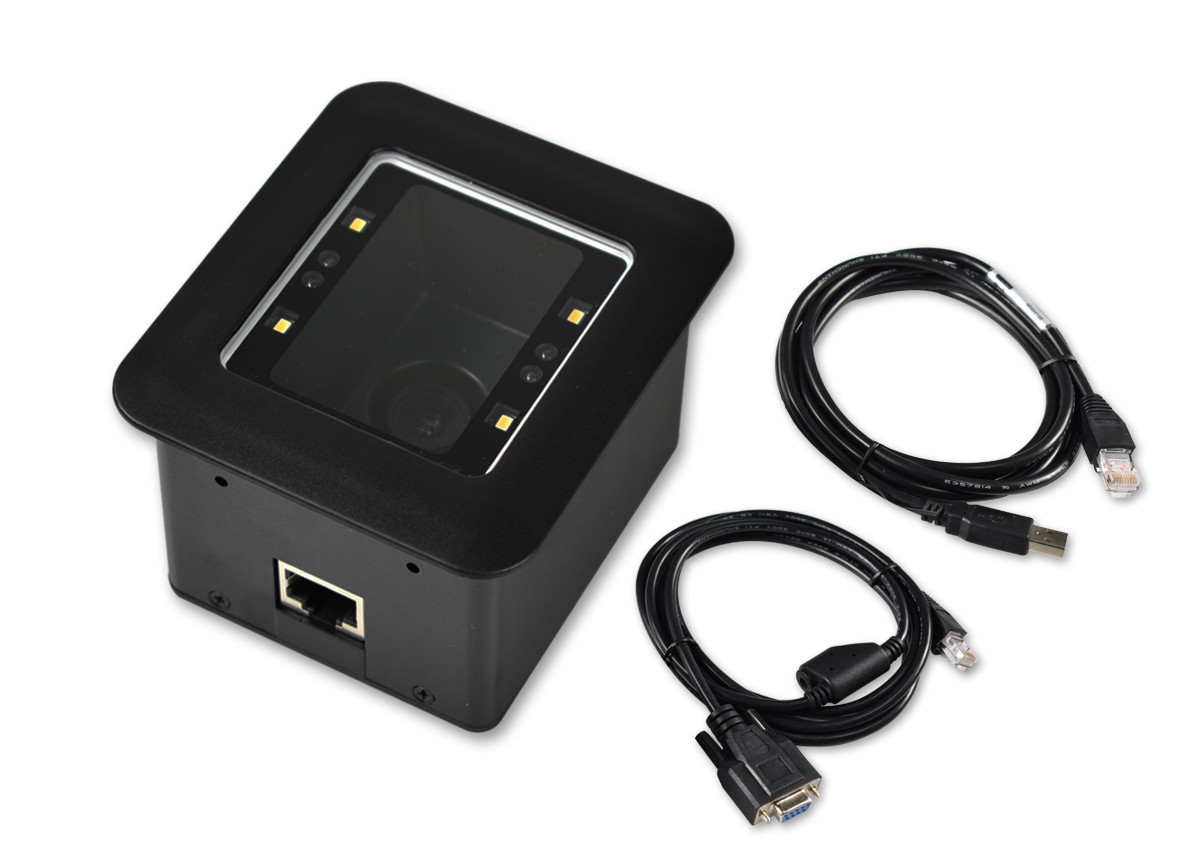

| Accessories | Cable | USB cable: Used to connect the 4500 to a host device. |
| RS-232 cable: Equipped with a power connector; used to connect the
4500 to a host device. |
| Power Adapter | Used to provide power for the 4500 |
| Output: DC5V, 1.5A; Input: AC100~240V, 50~60Hz |
Package
FAQ:
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it
depends on quantity and model you order.
