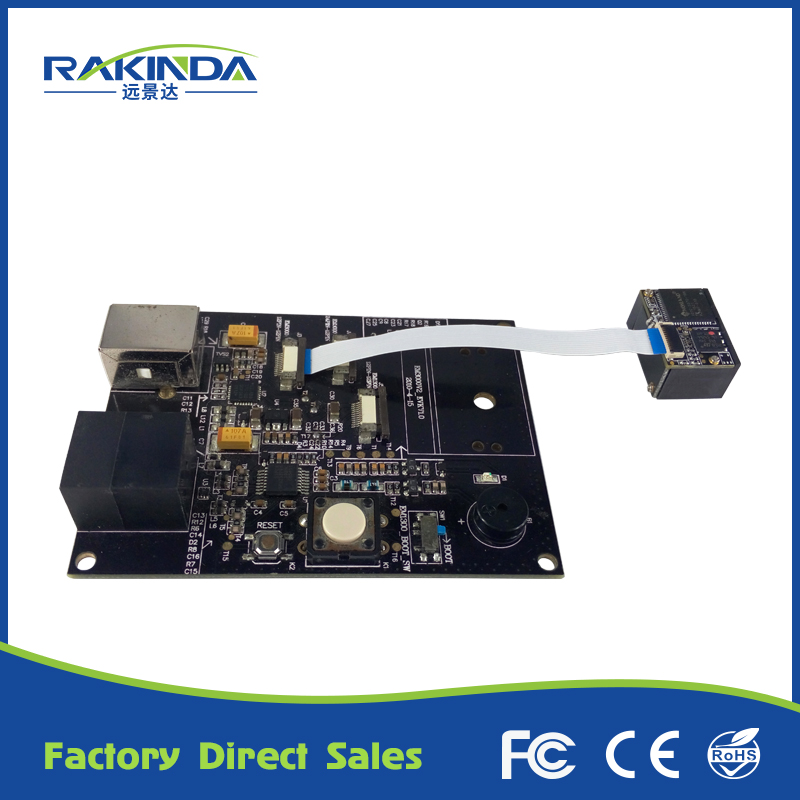

For SE955
With mini size, light weight and high environment adaptability, any
embedded application can be achieved easily. Besides, it is
seamless upgrade for SE955 and no need to change mold for their
same bottom screw hole. It is really a cost-effective solution.
Technical Specifications of Barcode Scanner
| Product name | 2D Barcode Reader Module |
| Item number | LV3096 |
| Processor | IOTC 2D decoder chip 48MHz |
| Interface | TTL-232 |
| Image Sensor | 752× 480 CMOS |
| Symbologies | 2D: PDF417, Data Matrix, QR Code
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of
5, Code 11,
Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. |
| Reading Precision | ≥ 5mil |
| Depth of Field* | EAN13 (13mil) 55mm - 185mm; Code 39 (5mil) 55mm - 100mm; PDF 417 (6.67mil) 40mm - 130mm; Data Matrix (10mil) 40mm - 135mm; QR Code (15mil) 40mm - 160mm |
| Symbol Contrast | ≥ 30% reflectance difference |
| Scan Angle** | Roll: 360°, Pitch: ±55°, Skew: ±55° |
| Field of View | Horizontal 36°; Vertical 23° |
| Ambient Light | 0 ~ 100,000 LUX (natural light) |
| Rated Power Consumption | 0.76W |
| Operating Voltage | 3.3±10% VDC |
| Dimensions | 21.17(W)×14.6(D)×11.52(H)mm |
| Current @ 3.3 VDC | Operating Current 230 mA; Standby Current 4mA (USB communication not supported); 7mA (USB
communication supported); Sleep Current <5 uA |
| Weight | 5.0g |
| Operating Temperature | -20 ℃ to + 60 ℃ |
| Storage Temperature | -40 ℃ to + 80 ℃ |
| Humidity | 5% - 95% ( non-condensing ) |
| Certification | FCC Part15 Class B, CE EMC Class B |
FAQ of Barcode Scanner Module
Problem: Barcodes cannot be read.
Solution:
1. Find out the barcode type and verify that the barcode type is
enabled. If the barcode parameters include check digit
verification, select the Disable option.
2. If you do not know the barcode type, enable all symbologies.
3. If they are inverse barcodes (bright images on a dark
background), enable the Video Reverse feature.
Problem: Incorrect output.
Solution:
1. If this problem happens to all barcodes and additional
characters appear before/after barcode data, disable all
prefix/suffix.
2. If this problem only happens to some barcodes and matches one of
the following situations:
a) incomplete barcode data: Enable the check digit verification.
b) both the first and last characters are asterisks (*): Disable
the transmission of start/stop characters of Code 39.
c) “a” transmitted as “+A”: Enable Code 39 Full ASCII.
Problem: Barcodes can be read, but cannot be displayed.
Solution: Verify that the serial port parameter (such as baud rate,
data bit and stop bit) settings match the host
Requirements.
Problem: Illumination and aiming beams are OFF.
Solution:
1. Verify that the engine is properly powered up.
2. Send “?” to the engine. If the engine returns a reply of “!”,
then send programming commands to turn on
illumination and aimer.
