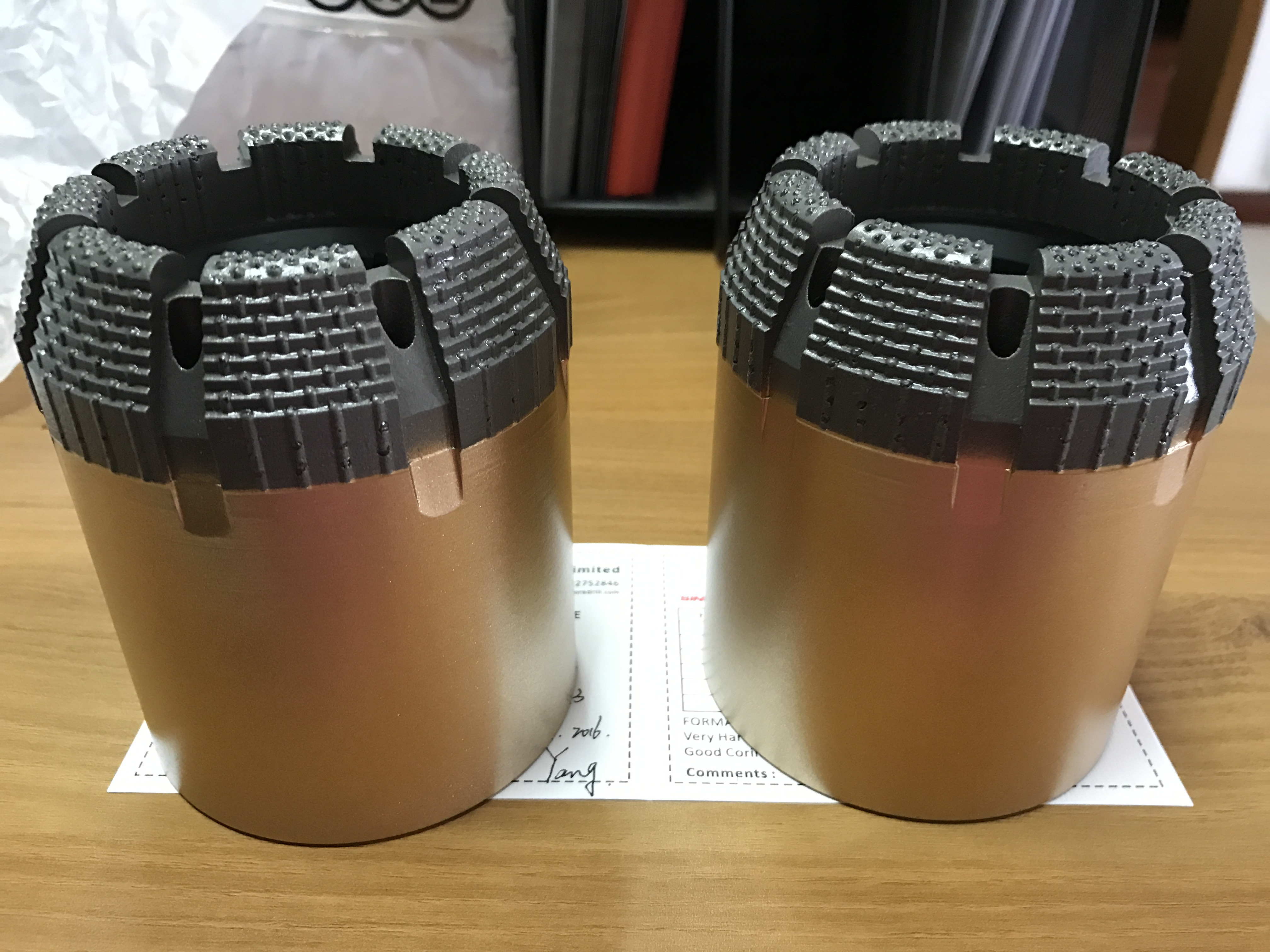

Face Discharge Natural Diamond HQ3 Surface Set Drill Bits
Descriptions:
Surface set bits are still a favoured alternative for softer
formations, or in highly abrasive ground where the balance in an
impregnated bit between matrix erosion and diamond wear would be
upset by the aggressive rock conditions.
The core drill bit with natural-surface set is mainly used to drill
relatively complete medium to high -hard formulations. There are 15
to 100 diamonds set on the matrix surface.
It's mainly made up of particles of diamonds, steel body and
carbide powder. And the diamonds are utilized for making complex
shapes of drill bits.
Features:
a) In drilling soft sedimentary rocks, our natural surface bit
could be quite efficient.
b) Various diamond core drill bits (natural-surface set) are
available as well as the crown profiles, diamond grades stone sizes
and erosion-resistant features.
c) The profiles of the crown directly effects the drilling speed,
hole diameter and core recovery.
d) Multistep bit drills usually work at the fastest speed but are
less powerful in hard, broken conditions, so round or semi-flat
profiles are preferred.
Specifications:
Diamond Core Drill Bit (Natural Surface Set)
It is suitable to drill medium-hard and soft formation stones. The
specifications of Diamond Core Drill Bit (Natural Surface Set )
include AQ, BQ, BQ3, NQ, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, PQTT,
NWF, HWF, PWF, SWF, 412, NWD4, AWT, BWT, NWT, HWT, NTW, BTW, BWG,
NWG, HWG, NMLC, and HMLC. Samples are available. The diamond core
drill bit (natural surface set) is step and half round crown.
Diamond sizes include: 6-10 spc, 10-15 spc, 15-20 spc, 25-30 spc,
30-40 spc, 40-50 spc, and 60-80 spc. They are A Grade, AA grade,
and AAA grade.
Natural diamond surface set double tube and single tube core bit
Its functions are to drill medium hard and soft formation stones.
The specifications of Natural diamond surface set double tube and
single tube core bit are as follows: T2 56, T2 66, T2 76, T2 86, T2
101, TB 56, B66, B76, B86, B101, B116, T6 76, T6 86, T6 101, T6
116, T6 131, T6 146, TNW, T6H, LTK48, and LTK60. Samples are
available. The natural diamond surface set double tube and single
tube core bit is also steps and half round crowns. Diamond sizes
are 6-10 spc, 10-15 spc, 15-20 spc, 25-30 spc, 30-40 spc, 40-50
spc, and 60-80 spc. They are A Grade, AA grade, and AAA grade.
Natural diamond noncoring bit
It is for noncoring drilling. The bits include 56mm and 76mm.
Samples are available. The natural diamond noncoring bit is step
and half round crown. Diamonds sizes include: 6-10 spc, 10-15 spc,
15-20 spc, 25-30 spc, 30-40 spc, 40-50 spc, and 60-80 spc. They are
A Grade, AA grade, and AAA grade.
Specifications
| ITEM | DIAMOND BIT | REAMING SHELL |
"Q"
Series
Wireline | Size | Bit-set OD | Bit-set ID |
| mm | inch | mm | inch | mm | inch |
| AQ | 47.60 | 1.88 | 26.97 | 1.06 | 48.00 | 1.89 |
| BQ | 59.50 | 2.35 | 36.40 | 1.43 | 59.90 | 2.36 |
| NQ | 75.30 | 2.97 | 47.60 | 1.88 | 75.70 | 2.98 |
| HQ | 95.58 | 3.77 | 63.50 | 2.50 | 96.00 | 3.78 |
| PQ | 122.00 | 4.80 | 84.96 | 3.35 | 122.60 | 4.83 |
Swedish
Metric
T2
Series | 36 | 36.0 | 1.417 | 22.0 | 0.866 | 36.3 | 1.429 |
| 46 | 46.0 | 1.811 | 32.0 | 1.260 | 46.3 | 1.823 |
| 56 | 56.0 | 2.205 | 42.0 | 1.654 | 56.3 | 2.217 |
| 66 | 66.0 | 2.598 | 52.0 | 2.047 | 66.3 | 2.610 |
| 76 | 76.0 | 2.992 | 62.0 | 2.441 | 76.3 | 3.004 |
| 86 | 86.0 | 3.386 | 72.0 | 2.835 | 86.3 | 3.398 |
| 101 | 101.0 | 3.976 | 84.0 | 3.307 | 101.3 | 3.988 |
Swedish
T
Series | TAW | 47.6 | 1.875 | 23.2 | 1.31 | 48.0 | 1.89 |
| TBW | 59.5 | 2.345 | 44.9 | 1.77 | 59.9 | 2.36 |
| TNW | 75.3 | 2.965 | 60.5 | 2.38 | 75.7 | 2.98 |
Wireline core drilling products:
Geological Core Bits:
Impregnated Bit(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)
Surface Bit(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)
Reaming Shell(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)
Core Barrels & spare parts:
core lifters, core lifter cases, stop rings, landing rings, landing
shoulders, inner tube stabilizers, locking couplings, adaptor
couplings,
inner tube and outer tubes wrenches, head assembly, Core Barells,
Warranty and Service
We always concerned about our clients and provides them with
warranty and service support.
The factory ensures equipment warranty for the major assemblies and
units efficient for 12 months. The clients are supplied with all
needed spare parts, tooling and auxiliary facilities.
The authorized dealers possess service centers to execute product
warranty liabilities, after-sales service and equipment repair. The
clients’ staff is also provided with theoretical and practical
company instructions and consultations on all matters concerning
execution of work and equipment operation.
Q:Are you trading company or manufacturer ?
A: We are a specialized manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
T/T, L/C, Western Union.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core
barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling,
geotechnical engineering and soil sampling.
Q: How about the delivery terms?
A: Min. order quantity: 1 piece. Transportation: By DHL/TNT/Fedex
express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promote technology support for all
problems and questions. Besides, we accept goods return or replace
for quality problem.
Q: Where is your factory located in?
A: Our factory is located in Jiangyin city,Jiangsu province, China.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our
products, Sinocoredrill usually makes a serious inspection for all
products and raw materials in strict procedure
