Four Mast Self Propelled Aerial Scissor Lift 10m For Business Decoration

    Buy cheap Four Mast Self Propelled Aerial Scissor Lift 10m For Business Decoration from wholesalers

    Buy cheap Four Mast Self Propelled Aerial Scissor Lift 10m For Business Decoration from wholesalers
    • Buy cheap Four Mast Self Propelled Aerial Scissor Lift 10m For Business Decoration from wholesalers
    • Buy cheap Four Mast Self Propelled Aerial Scissor Lift 10m For Business Decoration from wholesalers

    Four Mast Self Propelled Aerial Scissor Lift 10m For Business Decoration

    Ask Lasest Price
    Brand Name : SIVGE
    Model Number : GTWZ10-4010
    Certification : CE / SGS / ISO9001
    Price : negotiation
    Payment Terms : T/T, L/C, D/P, D/A
    Supply Ability : 30 units per month
    Delivery Time : 30-50 working days
    • Product Details
    • Company Profile

    Four Mast Self Propelled Aerial Scissor Lift 10m For Business Decoration

    10m four mast self propelled aerial lift / scissor lift for continuous aerial working purpose
    Product Description

    Using purpose:

    Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.


    Occasions suitable to use this machine:


    Places may in need of this kind of machine:

    Office buildings, hospitals, warehouses, factories, museums, auditoriums, gymnasium, business/convention center, airports, auto stations and highway toll station etc.


    Product standard features

    • Drivable at full height

    • One hand proportional joystick

    • AC inverter motor drive

    • Drive speed interlock

    • Tilt level sensor with audible alarm

    • Overload limit

    • Emergency stop buttons at both controls

    • Emergency lowering device in case of power supply failure

    • Battery charger indictor

    • Forklift pocket

    • Compact size with easy quick guardrail assemblage system

    • Low maintenance requirements will save you time and money.

    Specification


    10m four mast self propelled aerial lift / aerial scissor lift for continuous aerial working purpose


    Series

    Z4006E

    Z4008E

    Z4010E

    Z4012E

    Model-code

    GTWZ6-4006E

    GTWZ8-4008E

    GTWZ10-4010E

    GTWZ12-4012E

    Platform height(m)

    6

    8

    10

    12

    Working height(m)

    8

    10

    12

    14

    Roll out (mm)

    800

    800

    800

    800

    Capacity(kg)/occupants

    480/2

    300/2

    300/2

    250/1

    Capacity for extension platform(kg)

    100

    100

    100

    100

    Platform size(mm)

    1760*860

    1760*860

    1760*860

    1760*860

    Stowed length(mm)

    2430

    2430

    2430

    2430

    Stowed width(mm)

    1150

    1150

    1150

    1150

    Stowed height(mm)

    1980

    1980

    1980

    2450

    Machine weight(kg)

    2350

    2450

    2560

    2650

    Moving methods

    Drivable when fully lifted up

    Travel speed

    Stowed 2.5 km/h; Lifted 0.8 km/h

    Brake type

    Loss of power brake

    Turning Radius

    Outside 3060mm / inside 950mm

    Ground Clearance

    74mm

    Max. allowed wind speed

    12.5m/s

    Rated oil pressure

    12Mpa

    Power supply

    Elevating DC24V / Driving DC48V

    Power input

    Elevating 2.2Kw/ driving 3Kw

    Battery

    12V/120Ah *6

    Recharger

    DC24/15A, DC48V/20A

    • rated load for extenson: 100kg
    • Optional funtion: horizontal extension platform for 800mm at one side;

    If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.

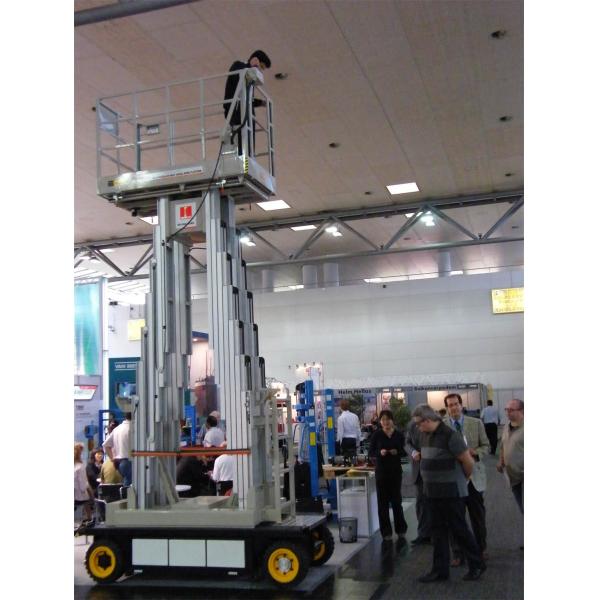

    Product photos


    Packing & Shipping

    LCL: plywood case with steel pallet at bottom

    FCL: steel pallet with anti-rust covers 20GP container for 4 set

    Delivery time is usually 10-50 working days according to order qty. and models.


    After-sale Service

    • To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
    • To provide remote service support by phone and network freely.

    SIVGE regards product safety as basic point of connecting to users.


    1)SIVGE firmly adheres to domestic and international standards in the process of designing, manufacturing and transporting; the strength of the parts and the stability of the whole machine must undergone strict calculation and experimental verification.
    2)All products are tested by the national authoritative testing institutions.
    3)The production process, inspection and parts purchasing are fully in accordance with quality assurance system.
