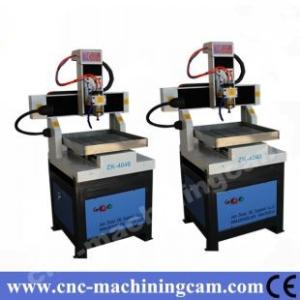

desktop mini cnc router for wood cutting ,metal engraving 4040
(400*400*120mm)
Machine’s feature of desktop mini cnc router for wood cutting ,metal engraving 4040 :
1.1.5kw water cooling spindle, can realize only diameter 1mm
engraving line, on the hardness materials.
2. Z axies Tainwan TBI ball screw.
3.Stepper motor and leadshine driver,best price and performance.
4.Auto tool calibration help you to set the tools, not break the
tool nose, ensure the accurate.
5.Stainless steel water tank ,when processing the metal materials
,cooling the materials and the cutters,
prolong the use life.
6.DSP offline working system, support Continuing working after the
break point/power failure,
lower the rejection rate.
7.Ergency stop button, ensuring the operation safe.
Machine’s application of desktop mini cnc router for wood cutting ,metal engraving 4040 :
1.Metal, copper,iron, aluminium, steel, stainless
stee...2D/3Dengraving, thin metal cutting.
2.Also can for the wood engraving&cutting, stone engraving,
PVC, MDF, acrylic, organic glass, glass....
Parameter of desktop mini cnc router for wood cutting ,metal engraving 4040 :
Certificate | CE |
Effective working area | 400(X)mm*400(Y)mm*120(Z)mm |
Moving type | Platform moving |
Materials | Cast Aluminum |
Water cooling system | Stainless steel water slot |
Working table | Aircraft aluminum T slot |
Guide rail | X,Z axies BSR liner round rail Y axies Taiwan Hiwin square guide
rail |
Transmission | Ball screw for X Y Z-axis ( YYZ-axis: #1605) |
Driving mode | Stepper motor |
Spindle motor | 1.5 kw water cooling |
Spindle speed | 0-24000rpm |
Spindle collet type | ER 11 |
Cutters diameter | 3.175mm, 4mm, 6mm |
Voltage | AC 220V, 50/60Hz, single phase |
Empty traveling speed | 0-8000mm/min |
Engraving speed | 0-6000mm/min |
Machine accuracy | 0.03mm |
Diagonal error | 0.5mm |
Resetting accuracy | 0.05mm |
Control system | DSP offline Options:(Mach3, PCI NcStudio) |
Motor wire | High soft specially for Numerical Control( 4*0.75) |
Spindle wire | Shielding high soft (3*1.5) |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Control software | Artcam, Options(Type3, Ucancam,JDPaint,powermill etc) |
Running environment temperature | 0-45 °C |
Relative humidity | 30%-75% |
Tools | Total 24 pieces |
Accessories | Water pumps(2), tools(15), power line, USB line, fixtures(4), user
manual, software CDs, PCI NcStudio card(1), collets(3), spanners(2),
brush(1), water tanks |
Samples of desktop mini cnc router for wood cutting ,metal engraving 4040 :
Welcome for your enquiry !~
