    Multi-functional Core Drill Rig OUNCE WELL RC6 Water Well Drilling Rig


    Multi-functional Core Drill Rig OUNCE WELL RC6 Water Well Drilling Rig

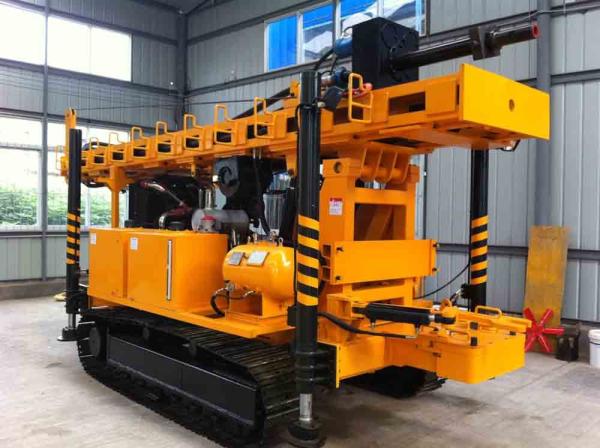

    RC6 water well drilling rig is a newly developed multi-functional full hydraulic drilling rig, the rig is suitable for plains, hilly land, hot and cold regions ,the machine is tracked with self-propelled chassis, available in wells, core exploration, shallow coal bed methane and other construction.


    It could meet to mud drilling tamping pipe hammer drilling, air-lift reverse circulation drilling and other drilling methods according to users’ requirements. The rig is low labor intensity, high drilling efficiency and high security for the workers.


    Main specification of RC6


    ItemsSpecification
    Diesel enginemodelYC6A
    power132kw/2000rpm
    Drilling capabilityφ73800m
    φ89600m
    φ114350m

    Rotation of power head

    Low gear1 gear speed0~45rpm14000Nm
    2 gear speed0~90rpm7000Nm
    High gear1 gear speed0~170rpm3600Nm
    2 gear speed0~340rpm1800Nm
    Push and pull ability of power headMaximum hoist capacity28ton
    Hoisting speedFull load 15m/min
    Maximum hoisting speedFast driving and reversing 30m/min
    Hoist crane at the topMaximum hoist capacity2000kg
    Diameter of steel wire rope12mm
    Length of steel wire rope30m
    Ropewinding(optional)Hoisting power(single rope)1200kg
    Diameter of steel wire rope6.3mm
    Length of steel wire rope1000m
    Effective hoisting distance of mast5.5m
    Adjusting angle of mast0°-90°
    Drill angle45°-90°
    Feed distance5500mm
    Slide distance of mast1000mm
    Total weight11 000kg
    size8000×2350×2500mm
