Quick Details
- Type: XPS Boards
- Place of Origin: Beijing, China (Mainland)
- Brand Name: DOESLIFE
- Model Number: Embossing, Slotting, Planing, Smooth Surface
- foam board: foam board
Packaging & Delivery
| Packaging Details: | Plastic Film |
|---|
| Delivery Detail: | 7 days |
|---|
<:article id="richTextContainer" class="article richtext
richtext-detail AE:disable">
Specifications
High compression resistance
Moisture-proof, airtight
Non-absorbent
Corrosion resistance
Low thermal conductivity, long life
Foam Board
XPS Insulation Boards (DOESLIFE) polystyrene resin as the main raw
material, by a special process of continuous extrusion molding of
rigid foam sheet under introduced production line, has a perfect
closed cell structure.
The world's most advanced foaming(CO2) process is applied. Our
products are more friendly to the environment.
It's widely used in wall insulation, cold storage, parking
platforms, airport, railway, concrete roof construction, highways,
etc.
Our certificates:
High-Tech Enterprise Certificate
ISO9001:2008
ISO14001:2004
ISO14024:1999 (China Environmental Labelling)
Advantages:
1. high compression resistance
2. moisture-proof
3. airtight
4. non-absorbent
5. corrosion resistance
6. low thermal conductivity
7. lightweight
8. Life time:60 years
9. environmentally friendly
Data Sheet:
| Technical Data Sheet |
| Extruded Sheet (XPS) |
| Model | ×200 ×250 ×350 | ×400 ×450 ×500 ×600 | ×650 ×700 ×800 |
| Thermal Conductivity w/mk | 0.026 0.027 0.030 0.032-0.035 |
| Dimensional Stability | 0.3-1.0 |
| Applicable Temperature | -50°C - +75°C |
| Compression Strength kpa | 200 250 350 400 450 500 600 650 700 800 |
| Water Absorption | 0.3-1.0 |
| Density kg/m3 | 30-33 33-36 36-40 43-53 |
| Combustion Performance | GB8624-2012 Grade A, Grade B1 and Grade B2; GB8624-2006 Grade C or
Grade B; GB8624-1997 Grade B1, Grade B2 and Grade A |
| Oxygen Index | IO26-33 |
| Length | 1200 1450 1800 2400 |
| Width | 600 1200 |
| Thickness | 5 10 20 25 30 40 50 60 70 80 90 100 120 |
| Edge Shape | SS Flat Top SL Lap Joint TG Tenon RC Rain Gutter |
| Surface | Embossing Slotting Planing Smooth Surface |

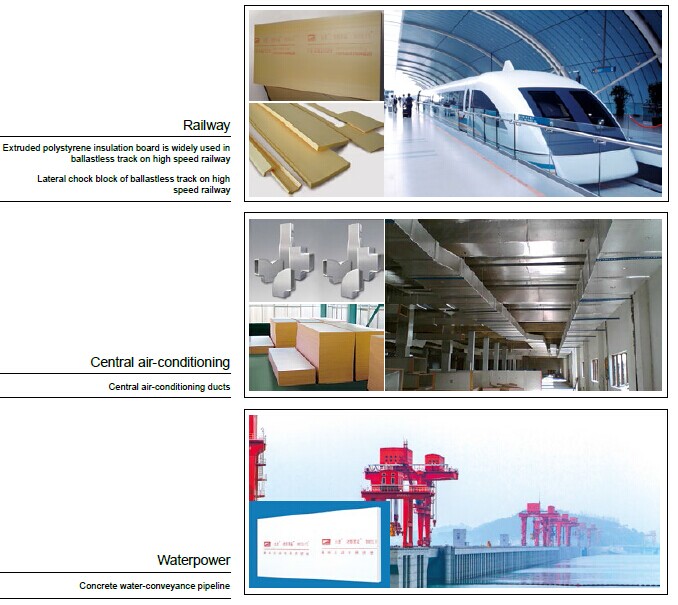

| Applications | Insulation and Energy-Saving for Building Walls; Heat Preservation
and Insulation for Cold Storage; Heat Preservation and Insulation
for Roof; Stops and Side Panel on High-Speed Rail and Roads; Duct
Pipe for Central Air Conditioner; Hydraulic Projects | Heat preservation and insulation for cold storage ground,
steel-work roof, concrete roof construction; Frost-heave control
for high-speed road, railway and airfield runway. | High-speed rail, CRTS track; Heavy cold storage ground. |
Surface Type:
Applications:
It's widely used in wall insulation, cold storage, parking
platforms, airport, railway, concrete roof construction, highways,
etc
Packaging:
COMPANY PROFILE
Beijing BEIPENG New Building Materials Co., Ltd, established in
2000, which is a globally integrated company supply specially
insulation board and application knowledge with an annual capacity
of 1,200,000 M3. In 2013, the total turnover volume of BEIPENG
exceeds US$83 million dollars with a total staff of 350.
BEIPENG Science and Technology Research is powered by China
National Building Materials Academy. Four production lines of XPS
extruded polystyrene insulation board introduced from Germany
Berstoff in 2009, and then another two production lines of PU foam
thermal insulation materials imported from Italy OMS group in
2012.Now BEIPENG is a leader in processing materials used in
building, cold storage, airport, railway, waterpower, the
ventilation of central air conditioning and etc.
BEIPENG's product range features high-quality insolation board,
specialty extruded polystyrene insolation board, polyurethane
insulation board, coating, rock wool, polymer mortar, anchor nail,
fiberglass and etc. Total solutions from BEIPENG replace older
technologies CFC agent, opening unforeseen innovation possibilities
for customers.
We hereby meet the highest quality requirements and maximize the
advantages of technical progress, social and environmental
requirements.
Why Choose us?
1. We're the largest manufactuer and leader of this industry in
China.
2. Various styles for you to choose.
3. High and stable quality with competitive price.
4. Short lead time.
5. Sample order or smaller quantity will be appreciated.
6. Best service will be offered to our clients.
Inquire us now and we'll not let you down.
