    Laser marking CNC rotation axis For fixed cylindrical , annular and irregular

    Ask Lasest Price
    Brand Name : JCZ
    Certification :
    Model Number : 80mm
    Price : USD900-1100/set
    Delivery Time : 1 day
    Payment Terms : T/T western Union
    Supply Ability : 1000 set/month
    • Product Details
    • Company Profile

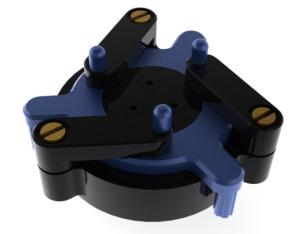

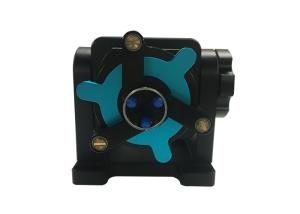

    Laser marking CNC rotation axis For fixed cylindrical , annular and irregular


    High speed 80mm Fixed angle laser rotary axis, Gear 8:1


    Quick Detail:


    Mainly used for rings, bracelets and special shape metal, nonmetal workpiece inside and outside surfaces engraving.


    Description:


    For fixed cylindrical, annular and irregular shape of object, with marking machine to engraving on the surface. Mainly used for rings, bracelets and special shape metal, nonmetal workpiece inside and outside surfaces engraving.

    • Gear:8:1
    • Chuck diameter:80mm,100mm
    • Internal jaw clamping range:2-22mm
    • External jaw clamping range:25-70mm
    • Max input torque:10kN
    • Max clamping force:40Nm
    • Type:Fixed Angle, Angle adjustable

    Applications:


    • Laser Marking
    • Laser Engraving
    • Rapid prototyping
    • Drilling circuit board via holes
    • Cutting cloth
    • Cutting paper

    Specifications:


    Basic parameters and main features

    Size (Diameter):80mm

    Internal jaw clamping range:2-22mm

    Internal jaw jamming range:25-70mm

    External jaw clamping range:22-63mm

    Max input torque:40Nm

    Max clamping force:10kN

    Max speed:4000r/min,5000r/min,6600r/min


    Geometry accuracy

    Internal jaw Radial run-out 0.005

    Internal jaw Axial run-out 0.005

    Internal jaw Radial run-out of chuck 0.030

    Internal jaw Axial run-out of chuck 0.030

    Internal jaw Radial run-out of test bar 0.080

    External jaw Radial run-out of test ring 0.075

    External jaw Axial run-out of test ring 0.040

    Internal jaw Radial run-out of tast ring 0.075

    Internal jaw Axial run-out of test ring 0.040




    Competitive Advantage:


    Good quality ,work stable ,slant , cheap
