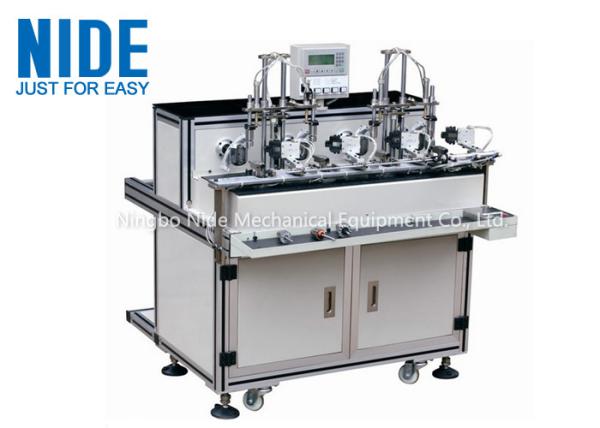

    Double Station Armature Electrical Motor Winding Machine / Small Rotor Winder

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-RM-AL2-N02
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : TT/ LC
    • Product Details
    • Company Profile

    Double Station Armature Electrical Motor Winding Machine / Small Rotor Winder


    Double Station Armature Electrical Motor Winding Machine / Small Rotor Winder


    Quick Detail:

    1. This armature Winding Machinemachine is suitable for small armature with 3-5 slots.
    2. The coil winder has two working stations so that it can wind 2 armatures at same time.
    3, Machine is controlled by PLC.

    Description:

    This kind of Two Station Armature Winding Machine is used for the small armature with 3~5 slots. There are 2 working stations, 2 armature can be winded at same time. Machine is controlled by PLC.



    Technical parameter:

    Machine main technical parameter

    Power source

    220VAC ±10% / 50Hz

    Main motor power

    ≤1.5kW

    Max rotation speed of main spindle

    3000rpm

    No. of station

    2 stations

    Wire diameter range

    0.2mm~0.6mm

    Armature slots range

    3 slots or 5 slots

    Armature O.D. range

    Φ30mm~Φ43mm

    Stack length range

    15mm~25mm

    Armature spindle range

    Φ5.5mm

    Air source

    0.4Mpa~0.6Mpa

    Working temperature

    45℃

    Store temperature

    50℃

    Working humidity

    <65%

    Store humidity

    <45%


    Information needed for Armature Winding Machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Rotor lamination drawing

    2. Rotor assemble drawing

    3. Rotor stack drawing

    4. Rotor winding diagram drawing: with rotor wire diameter and turn number

    5. Commutator drawing

    6. Required productivity

    7. Other technical requirement

    If possible, it will be better if customer can send us samples.


    Competitive advantages:

    This machine has two working stations, and it can wind two armatures at same times. So it saves more time.


    Armature after winding by this machine
