Flexible Steel Wire Rope , Anti Twist Braid Steel Rope for Overhead Power Cables Stringing 28mm 580kN

    Buy cheap Flexible Steel Wire Rope , Anti Twist Braid Steel Rope for Overhead Power Cables Stringing 28mm 580kN from wholesalers

    Buy cheap Flexible Steel Wire Rope , Anti Twist Braid Steel Rope for Overhead Power Cables Stringing 28mm 580kN from wholesalers
    • Buy cheap Flexible Steel Wire Rope , Anti Twist Braid Steel Rope for Overhead Power Cables Stringing 28mm 580kN from wholesalers

    Flexible Steel Wire Rope , Anti Twist Braid Steel Rope for Overhead Power Cables Stringing 28mm 580kN

    Ask Lasest Price
    Brand Name : Boyu
    Certification : ISO9001
    Model Number : YL28-18xT29
    Price : Negotiable
    Delivery Time : 15~25 days
    Payment Terms : TT/LC
    Supply Ability : 300000m/month.
    • Product Details
    • Company Profile

    Flexible Steel Wire Rope , Anti Twist Braid Steel Rope for Overhead Power Cables Stringing 28mm 580kN


    Flexible Steel Wire Rope , Anti Twist Braid Steel Rope for Overhead Power Cables Stringing 28mm 580kN


    Quick details:

    • Transmission Line Stringing Accessories

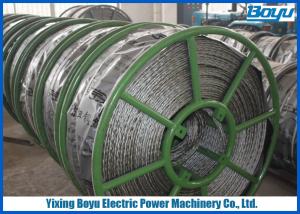

    • Anti twist Braided Steel Wire Rope
    • Normal Diameter: 28mm
    • Breakage load: 580kN
    • Size available: 9~30mm
    • 6 Squares 18 Strands
    • Length: 500m
    • Reel diameter: 1400mm
    • Rope structure: T29
    • Boyu Brand

    Description


    Anti twist braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.


    Item no.

    Normal Diameter (mm)

    Structure

    Breakage tension(kN)

    Standard Length (m)

    Diameter of spool

    (mm)

    Total weight

    (kgs)

    YL9-12x19W

    9

    12 Strands

    55

    1000

    850

    294

    YL10-12x19W

    10

    12 Strands

    55

    1000

    850


    YL11-12x19W

    11

    12 Strands

    80

    1000

    1000

    454

    YL13-12x19W

    13

    12 Strands

    120

    1000

    1100

    642

    YL16-12x19W

    16

    12 Strands

    158

    1000

    1250

    886

    YL18-12x19W

    18

    12 Strands

    210

    1000

    1400

    1154

    YL20-12x29Fi

    20

    12 Strands

    250

    1000

    1400

    1394

    YL22-12X29Fi

    22

    12 Strands

    320

    1000

    1400

    1258

    YL24-12x29Fi

    24

    12 Strands

    360

    800

    1440

    1474

    YL28-12x29Fi

    28

    12 Strands

    480

    500

    1600


    YL30-12x29Fi

    30

    12 Strands

    540

    500

    1600


    YL20-18x19W

    20

    18 Strands

    300

    1000

    1440

    1368

    YL22-18X29Fi

    22

    18 Strands

    389

    800

    1440


    YL24-18x29Fi

    24

    18 Strands

    440

    800

    1440


    YL28-18x29Fi

    28

    18 Strands

    580

    500

    1600

    1655

    YL30-18x29Fi

    30

    18 Strands

    658

    500

    1600

    1900


    Customers


    Maufacturer Introduction
    Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are in China, Jiangsu province, near Shanghai, around 3 hours by car.

    Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

    1. Line Stringing Equipment and accessories and tools.
    2. Nonmetallic galvanized the production equipment (Achieved high-tech products)
    3. Numerical control machine
    4. Low voltage no power-arc furnace compensation system

    28mm 580kN Non twisting Galvanized Braided Steel Wire Rope Overhead Cable Stringing
