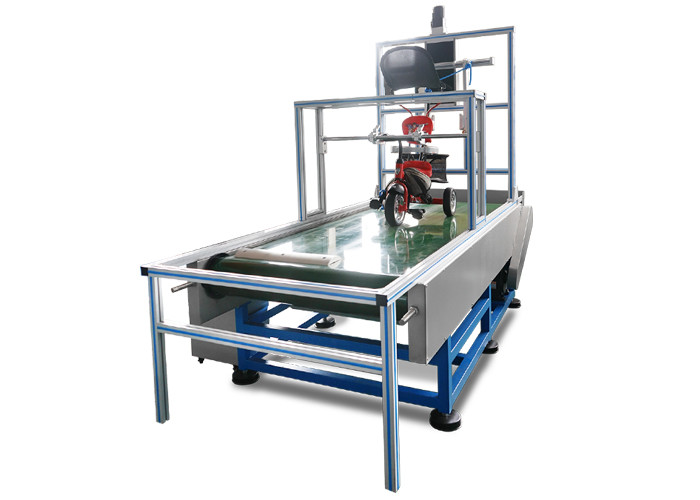

    Irregular Surface Strollers Testing Machine , Durability Dynamic Test Machine

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-J205
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    Irregular Surface Strollers Testing Machine , Durability Dynamic Test Machine

    Irregular Surface Strollers Testing Machine , Durability Dynamic Test Machine


    Description:


    The machine according to CNS hand push baby carriages dynamic durability test specification produced. The test methods are: the home model infant car Taichung, the turntable in the test stage, to adjust the conveyor speed of 1.4 ± 0.1m/sec (5kw / h ± 3.6 kw / h) The. After 64 hours of continuous testing, visual car damage. Up to set the number of times to automatically stop the operation. This machine is equipped with electric eye safety device to prevent handle and rubber beam ring fracture resulting in the baby car lost control and damage to the test machine. This machine is suitable for the end of round hand push baby carriages simulate traffic movement and body dynamic durability test.


    Irregular Surface Strollers Testing Machine , Durability Dynamic Test Machine


    Design standards: EN1888: 2003 Clause 17.


    Main technical parameters:


    Experimental work1,2-position of station (optional)
    Test speed5km / h ± 0.1km / h (adjustable)
    Drive modecanvas rubber conveyor belt drive wheel drive, plus a special aluminum alloy conveyor belt drive roller reinforcement
    Driver hpsupply AC380V × diameter × 3HP
    Down to adjust the distanceMax. 300mm
    Effective WidthMax. 1000mm
    Test countLCD,0-999, 999
    Carrying loadMax. 100Lb
    Power SupplyAC380V × diameter × 5KW
    Size of machine(L × W × H) 3300 × 1400 × 1900mm
    Weightabout 600kg
    The impact of block shapetrapezoidal, semi-circular or designated
