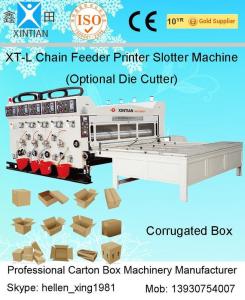

    Adjustable Carton Making Machine With Remote Computer Diagnosis System , Stacker

    Ask Lasest Price
    Brand Name : Xintian
    Certification : CE ISO9001:2000
    Model Number : XT-G
    Delivery Time : 30-90 days
    Payment Terms : TT,L/C
    Supply Ability : 2 sets per month
    • Product Details
    • Company Profile

    Adjustable Carton Making Machine With Remote Computer Diagnosis System , Stacker

    Adjustable Carton Making Machine With Remote Computer Diagnosis System , Stacker


    Functions and features:

    • International famous brand electric parts and computer software are used in the whole machine with stable and reliable quality; human-computer interface, computer order storage, convenient operation and faster order update.(It can prestore 999 orders in the computer.)

    • Complete machine baffle and important parts use tempering to decrease the metal internal force; and all parts are made by high-precision processing center and grinded by numerical -control grinder.

    • All transmission axles and rollers are made by high-quality steel, and processed through tempering and dynamic balance; plated with rigid chrome and grinded surface.

    • All transmission gears are made by 20CrMnTi alloy steel, which is grinded after heat-treatment, rigidity HRC58-62, and which is made by rubbing, 6 grade precision to maintain high topping precision after long using.

    • All transmission parts (connected with the axles and gears) adopt the hand-free connecting ring to eliminate the interval, suitable for long-term high-speed running.

    • All transmission bearings adopt strengthened model bearing, equipped with dustproof windtight parts and the oiling, handy to maintenance, lasting for longer using.

    • The whole machine undergoes automatic spray lubrication, with intuitionistically showing facilities and double oil pipe balance system.

    • The whole machine runs with the adjustment presetting function, feeding, printing, slotting, die cutting all featuring auto- zeroing and memory automatic reposition.

    • The whole machine working interval adjustment adopts fast spanner-free adjustment and the electromagnetic brake system with the worm wheel and worm setting operates fast and conveniently.

    • The mainframe chooses control by frequency conversion, with more stable and energy-saving for start-up and running.

    • Option for the vacuum adsorption, kick feeding or leading edge feeding.

    Optional equipments: ceramic anilox roller, leading edge feeding system, remote computer diagnosis system, stacker.

    Main Technical Parameter


    SERIAL

    WYAZS

    UNIT

    WYAZS

    1200×2000/2400

    1400×2000/2400

    1500×2400/2800

    1

    Inboard width

    mm

    2400

    2800

    2400

    2800

    2800

    3200

    2

    Max.coverage size

    mm

    1270×2200

    1270×2600

    1470×2200

    1470×2600

    1570×2600

    1570×3000

    3

    Min.coverage size

    mm

    320×640

    320×640

    380

    ×720

    380×720

    450×800

    450×800

    4

    Max.printing area

    mm

    1200×2000

    1200×2400

    1400×2000

    1400×2400

    1500×2400

    1500×2800

    5

    Skip feeding

    mm

    1450×2000

    1450×2400

    1650×2000

    1650×2400

    1750×2400

    1750×2800

    6

    Thickness of printing plate

    mm

    7.2

    7.2

    7.2

    7

    Max.speed

    Pieces/min

    150

    140

    120

    8

    Economic speed

    Pieces/min

    120

    120

    100

    9

    Topping precision

    mm

    Four color ±0.5

    Four color ±0.5

    Four color ±0.5

    10

    Slotting precision

    mm

    ±1.5

    ±1.5

    ±1.5

    11

    Max.slotting depth

    mm

    300

    350

    390

    12

    Min.slotting interval

    mm

    Clockwise:

    160×160×160×160

    260×60×260×60

    Clockwise:

    180×180×180×180

    280×80×280×80

    Clockwise:

    200×200×200×200

    280×80×280×80
