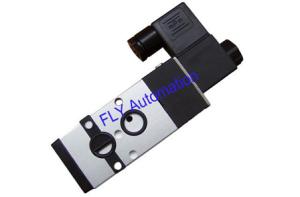

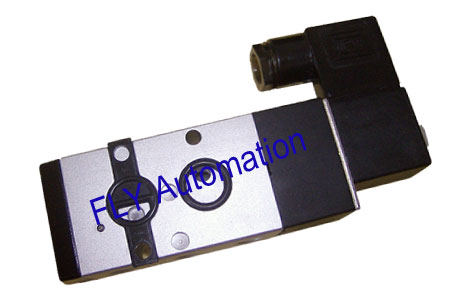

5/2 Way and 3/2 way Namur Convertible, Flying Leads, DIN43650B, Pneumatic Solenoid Valves

Ask Lasest Price
Brand Name :	Namur,FLY
Certification :	CE, ISO9001
Model Number :	F5231-08M
Price :	USD5-9
Delivery Time :	3 working days after receiving the customers' payment
Payment Terms :	T/T,Western Union,Paypal
Supply Ability :	3000 pcs per month

Add to Cart

1.ISO9001:2000, CE certificated
2.Ordering Code:F5231-08M

3.This Namur valves is 5/2 Way and 3/2 way convertible

4.Low price, long lifespan

5.Detailed information

Ordering Code	F3211-06M	F3221-06M, 08M	F3231-08M	F5211-06M	F5221-06M, 08M	F5231-08M
Ordering Code	F3212-06M	F3222-06M, 08M	F3232-08M	F5212-06M	F5222-06M, 08M	F5232-08M
Acting type	Single or Double coil, 3 port 2 way			Single or Double coil, 5 port 2 way
CV Value	0.67	0.78, 0.89	1.39	0.67	0.78, 0.89	1.39
Port size	1/8"	1/8", 1/4"	1/4"	1/8"	1/8", 1/4"	1/4"
Working medium	Air(to be filtered by 40μ filter element)
Working pressure	0.15~0.8MPa
Max. Test Pressure	1.2MPa
Temperature Range	-5~50℃
Voltage	AC:12V, 24V, 36V, 48V, 110V, 220V, 380V DC:12V, 24V, 36V, 48V, 110V
Voltage Range	-10%~+10%
Power consumption	AC:5.5VA DC:4.8W
Insulation Class	F Class
Protection Class	IP65
Wiring/connector	Flying leads or DIN type
Switching Frequency	5 cycle/second
Response Time	0.05 second

6.Technical Drawing
