    Hydraulic Curving Roof Panel Roll Forming Machine for Round Roofs of Buildings

    Ask Lasest Price
    Brand Name : DB
    Model Number : According to profile
    Certification : ISO,CE,SGS
    Delivery Time : 25days
    Payment Terms : TT/LC
    Supply Ability : 10 sets/month
    Price : USD5,000-USD10,000
    • Product Details
    • Company Profile

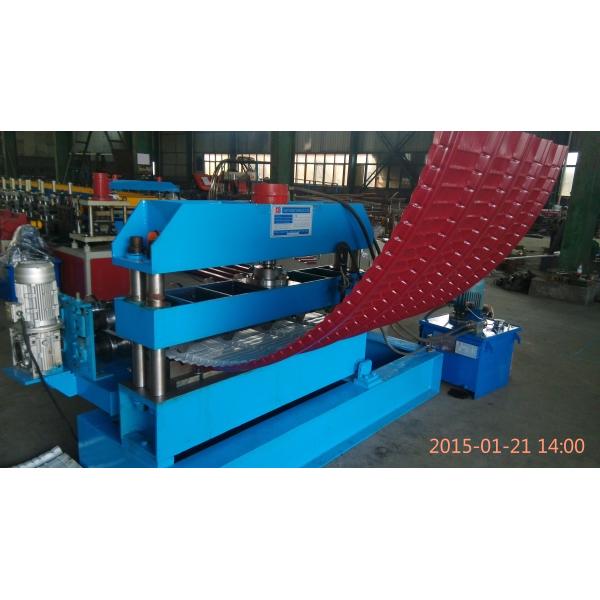

    Hydraulic Curving Roof Panel Roll Forming Machine for Round Roofs of Buildings

    Hydraulic Curving Roll Forming Machinery for Round Roofs of Buildings


    Introduction:

    Hydraulic Arch crimping machine is and bending machine for roof panel and used to crimp the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings. The Composition of hydraulic Arch crimping machine Crimping main machine and Control panel, this crimping machine can crimp both ends of roofing sheet.


    Main specification:

    Formed Profile TypeArch Roof panel
    Raw material thickness0.3-1.0 mm
    Corrugated Punching mouldsCR12, HRC55-60
    Line speed0-10m/min
    Feeding modeServo motor, 1kw
    Main power0.85KW
    Hydraulic station power5.5KW
    Electrical control systemPLC
    Max. bending angle120
    Machine size3000 mm×1400mm×1400 mm

    Our advantage:

    1.Competitive price.

    2.Reliable and stable.

    3.SGS and CE certification
    4.OEM of many companies
    5.Fast delivery

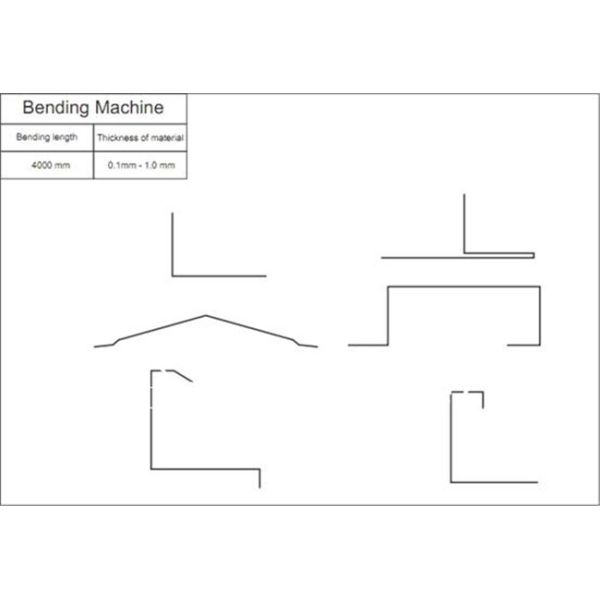

    The profile darwing:
