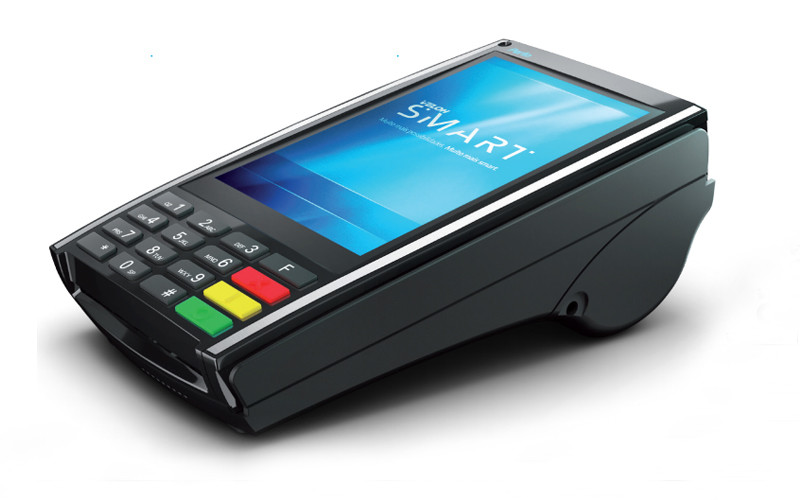

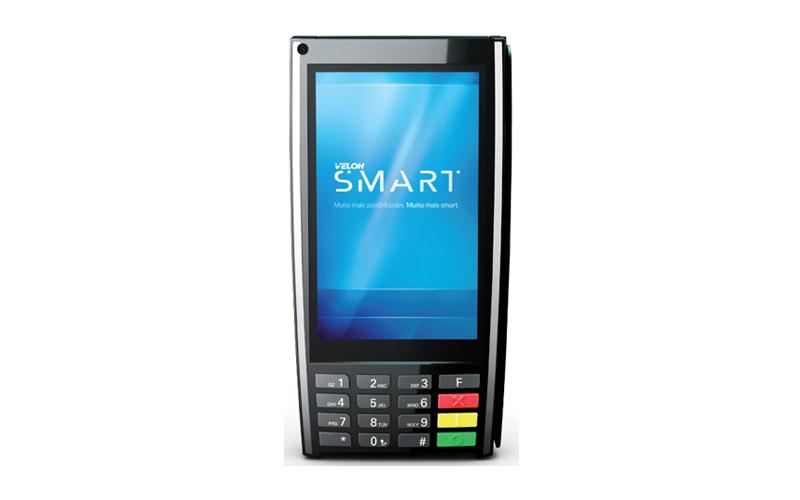

Customized TFT LCD DISPLAY screen for POS machine card reader
Customized TFT LCD DISPLAY Screen For POS Machine Card Reader
TFT LCD Screen Technology Reference Materials:
NOTES:
1.DISPLAY TYPE: 4.3" TFT
2.VIEWING DIRECTION: 80/80/80/80(U/D/L/R @ CR>10)
3.LCD DRIVE IC: ILI9806E
4.POLARIZER MODE: TRANSMISSIVE/NEGATIVE
5.CTP NOTE:
LENS+ITO Film+ITO Film+FPC+adhesive
LENS GLASS: 1.1mm
IC: GT911
6.OPERATING TEMP: -10°C~+60°C
7.STORAGE TEMP: -20°C~+70°C
8.UNMARKER TOLERANCE: ±0.20
9.REQUIREMENTS ON ENVIRONMENTAL PROTECTION: RoHS
| MODEL NO. | CH430WV12A-CTA |

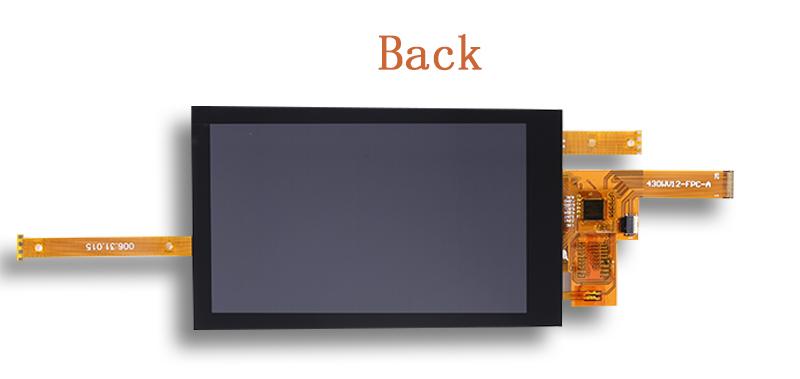

| Module type | 4.3"TFT + CTP |
| Display Mode | IPS / Transmissive / Normally Black |
| CTP type | G+F+F |
| Number of Dots | 480*3(RGB)*800 |
| Viewing Direction | ALL |

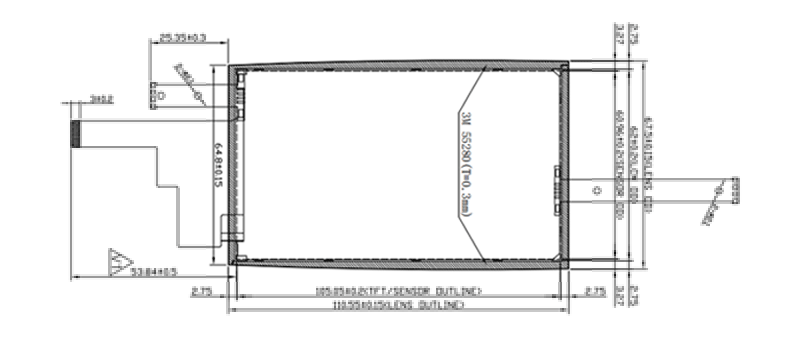

| Module size | 62.5(W)*109.55(H)*4.0(T)mm |
| TFT Active area | 56.16(W)*93.6(H)mm |

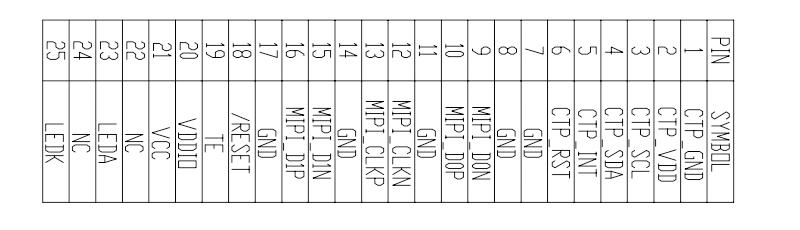

| Interface | TFT: MIPI CTP:I2C |
| Luminace | 350cd/m2 |
Information about CH430WV12A-CTA TFT LCD Display
