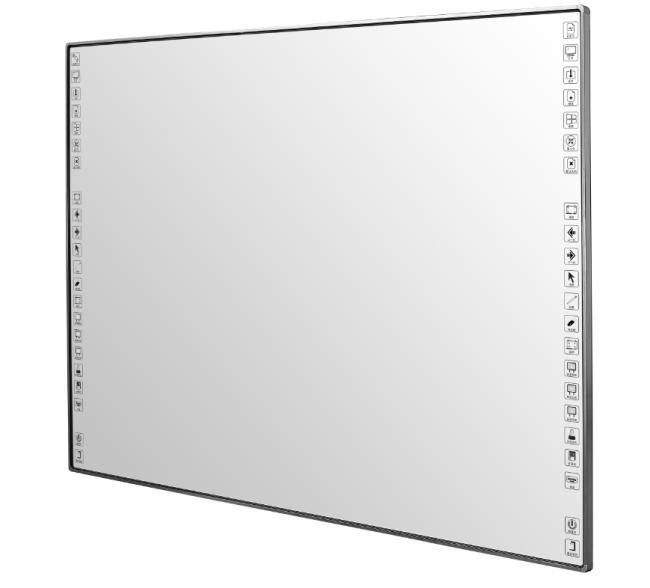

Smart Interactive Whiteboard
Product features Infrared electronic whiteboard Featuring an industry-first 8.5mm ultra-narrow bezel design, plastic flat corners, and a variety of sizes, customization is also available. It includes four-stage shortcut keys, touch switches, and display stand switches Shuangpin Internet Green Board Multiple electronic boards are perfectly integrated. Personalized shortcut keys allow for simultaneous display of the writing screen Android whiteboard (recommended for meetings)
Product features
Infrared electronic whiteboard
Featuring an industry-first 8.5mm ultra-narrow bezel design, plastic flat corners, and a variety of sizes, customization is also

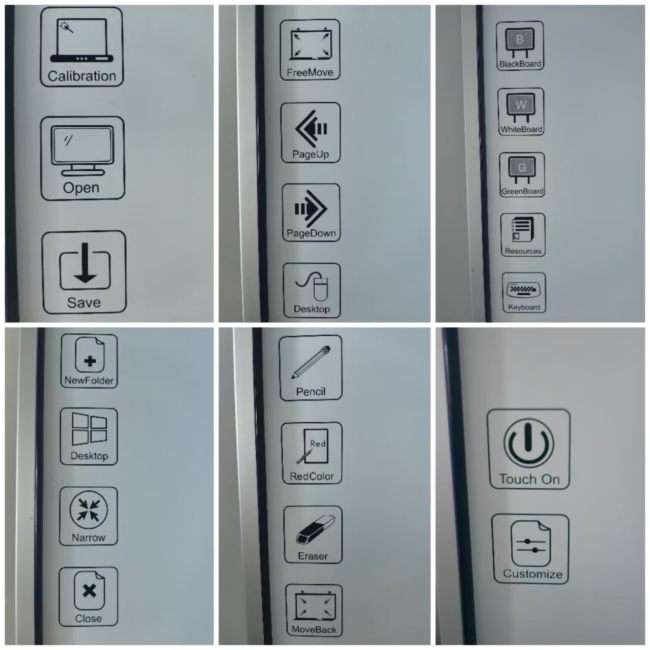

available. It includes four-stage shortcut keys, touch switches, and display stand switches
Shuangpin Internet Green Board
Multiple electronic boards are perfectly integrated. Personalized shortcut keys allow for simultaneous display of the writing screen
Android whiteboard (recommended for meetings)
The Android box features a back-mounted design that integrates perfectly with the whiteboard, making it convenient and easy to use. No tools are required; simply
connect it to a projector and it's ready to use anytime
1,Specification
| Touch Screen Size | 83";86";96";106";120";(Customization is available.) |
| Touch Activation Force | No pressure required |
| Luminous Transmission | >92%(100% with no glass) |
| Reported Touch Resolution | Without Driver:32768*32768 |
| Touch Response Time(Multi touch) | 10-15ms |
| Touch Response Time(One touch) | 7ms |
| Minimum Recognition Point Size | 4mm*4mm |
| Touch Object Size Recognition | Yes |
| Interface | USB 1.5米,7P USB 1.5米 |
2,Electrical Specification:
| Touch Refresh Rate | ≥80Hz |
| Communication | USB 2.0 Full Speed |
| PowerSupply Mode | USB*1 |
| Working Voltage | DC 5.0V±5% |
| Average Current | ≤200mA |
| Power Cunsumption | ≤ 1.0W |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than 10% non-consecutive sensors are damaged |
3,Environmental Specification:
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃～50℃ Storage temperature:-20℃～60℃ |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge |
| Anti-light Interference | Excellent |
4,Software Specification:
| Firmware Upgrade | USB Upgrade: Win 8,Win 7 |
| Support OS(Multi touch) | Win10,Win8,Wins7,Andriod |
| Support OS (One touch) | WindowsXP,MacOS. |
