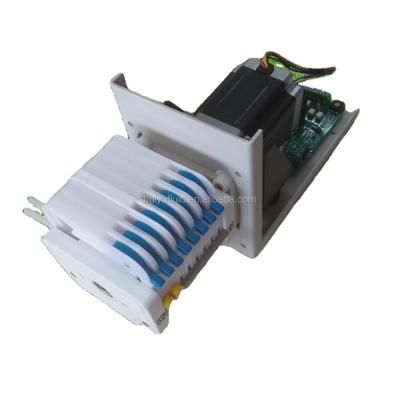

OEM peristaltic pump hydroponic feeder
Product Description OEM peristaltic pump hydroponic feeder - Flow range:0006-41ml/min - Speed: ≤100rpm- Speed resolution: 0.1rpm- Max. flow rate: 41mL/min- Tubing: ID≤3.17mm wall thickness 0.8mm-1.0mm- *Direction control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.- *Start/stop control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.- *BCD dial switch
carton with foam plastic
OEM peristaltic pump hydroponic feeder
- Flow range:0006-41ml/min
- Speed: ≤100rpm
- Speed resolution: 0.1rpm
- Max. flow rate: 41mL/min
- Tubing: ID≤3.17mm wall thickness 0.8mm-1.0mm
- *Direction control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- *Start/stop control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- *BCD dial switch speed control: 15 kind of speeds are available for internal control, and "0" position is for external control.
- *External speed control (optional):
4-20mA corresponding to 0-100rpm
0-5V corresponding to 0-100rpm
0-10V corresponding to 0-100rpm
0-10kHz corresponding to 0-100rpm
- Dimension (LxWxH): 107mmx60mmx80mm
- Relative humidity: <80%
- Operating temperature: 0 to 40°C
- Power supply: DC11.4V-25.2V/10W
