ph control dosing pump
Product Description ph control dosing pump Introduction Instruction of signal bs100-1aq peristaltic pump BS100-1AQ precise peristaltic pump combines multifunctions and compact size into a single pump that can be mounted into a rack or panel of your equipments. The pump delivers flow rates form 0.06 to 180 mL/min.Analog interface or RS485. Specifications of signal bs100-1aq peristaltic pump - Flow range:0.06-180ml/min -Speed: 1-100rpm, reversible-Speed precision: 1 rpm
packing:1set in 1 carton , size: 30cm x 20cm x 20cm
ph control dosing pump
Introduction
Instruction of signal bs100-1aq peristaltic pump

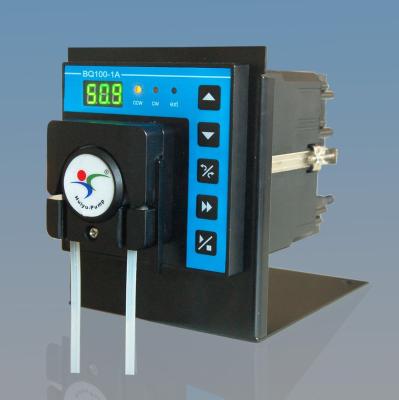

BS100-1AQ precise peristaltic pump combines multifunctions and compact size into a single pump that can be mounted into a rack or panel of your equipments. The pump delivers flow rates form 0.06 to 180 mL/min.Analog interface or RS485.
Specifications of signal bs100-1aq peristaltic pump
- Flow range:0.06-180ml/min
-Speed: 1-100rpm, reversible
-Speed precision: 1 rpm (External Control 0.1 rpm)
-Display:Displays speed range and running status.
-External interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control
-Communication Interface: RS485
-Power supply:DC24V/1A or Adapter.
-Power consumption: <20W
-Operating condition: Temperature 0 - 40 °C
-Relative humidity < 80%
-Drive dimensions (L × W × H): 140*96*96mm
-Pump weight: 0.8kg
-IP rating: IP 31
Parameters
| Drive | Pump head | Flow rates | Tubing (mm) | Weight (kg) |
| BQ100-1A | WX10 | 0.06 – 41 | Wall Thickness: 0.8 - 1.0, Inner Diameter:≤ 3.17, ex. 0.5 × 0.8 1 × 1 2 × 1 2.4 × 0.8 3 × 1 etc. | 0.8 |
| JY15 | 0.2-165 | 14# 19# 16# 25# 17# | 0.8 |
Tubing details
1Piece in carton with foam plastic foam.
Usually , the pumps will be delivered by DHL, TNT or UPS.
1 year warranty for all of our pumps
