6x30A Portable Relay Testing Equipment

Name: 6x30A Portable Relay Testing Equipment
Brand: Metrum Henan Electric Technology Co.,Ltd.

Protection Relay Test set MC3000B This secondary injection set MC3000B is a universal and high accuracy test system for testing substation and protection relays, energy meeters and transducers. Plug & Play amplifiers and functional modules can be easily installed and replaced by the user locally. The 7 voltage outputs can be used for many particular test approach, such as Six currents and seven voltages High power and high accuracy Advanced modular Plug-in structure Full

Place of Origin China

Packaging Details wooden package

Aux DC supply 0-300V

Model Number MC3000B

Voltage Range 7*300V

Supply Ability 30 sets per month

wifi router portable portable heavy duty air compressor portable power suppy

Product Description

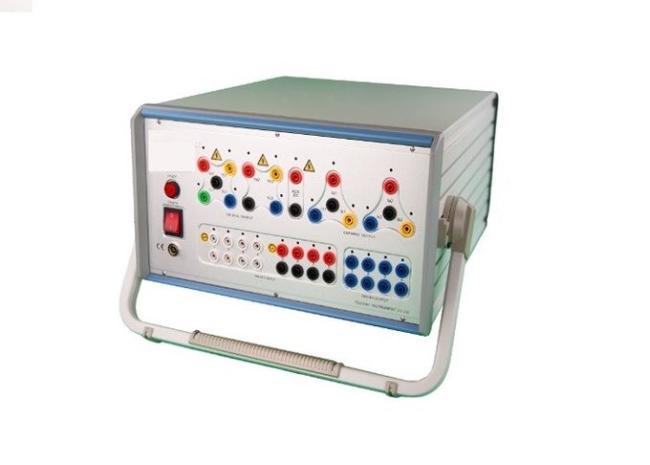

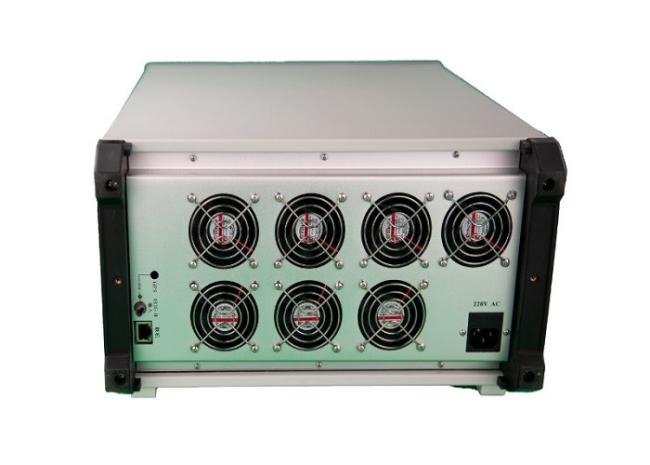

Protection Relay Test set MC3000B

This secondary injection set MC3000B is a universal and high accuracy test system for

testing substation and protection relays, energy meeters and transducers. Plug & Play

amplifiers and functional modules can be easily installed and replaced by the user locally.

The 7 voltage outputs can be used for many particular test approach, such as

Six currents and seven voltages

High power and high accuracy

Advanced modular Plug-in structure

Full automated testing using PC control software

End to end test with GPS or IRIG-B

Light weight, easy to use

3 years free warranty

Protection Relay Test set Specifications

Voltage
Range	7 x 300V / 100VA
Accuracy	error < 0.05 % rd.+ 0.01 % rg. typ.
Output time	continuous
Current
Range	6x 30A / 450VA
Accuracy	error < 0.1 % rd. + 0.02 % rg. typ.
Output time	> 15 Sec. at 30A
Frequency
Range	DC, 0.001Hz~1000Hz
Accuracy	±1ppm
Resolution	0.001Hz
Others
Auxillary DC supply	0-300V
Binary inputs	8
Binary outputs	4
Time synchronization	GPS, IRIG-B
Weight	≤17kg
