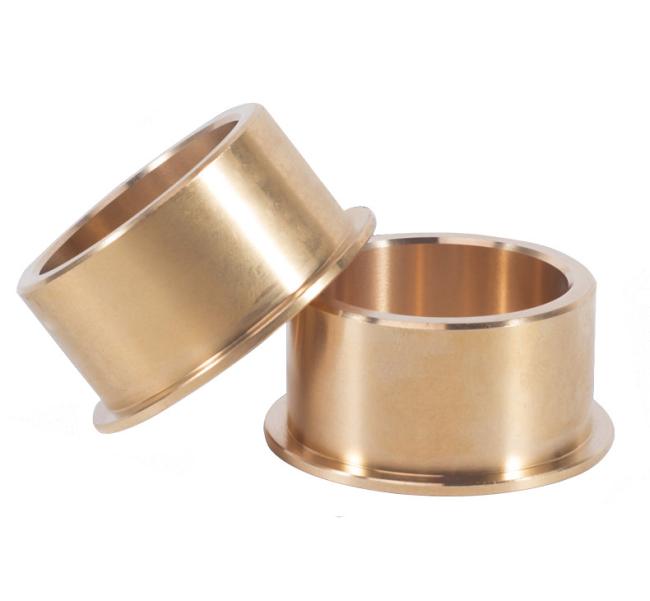

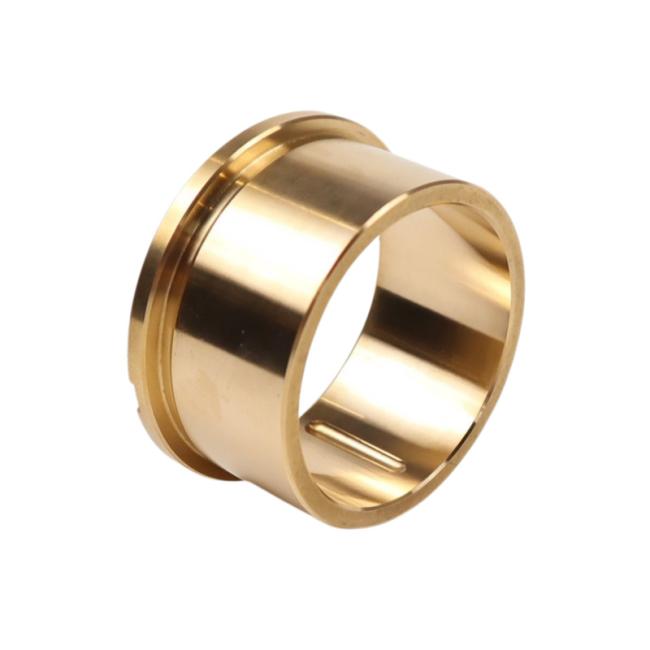

Cast Turned Bronze Bushing Suitable For High Loads
Turned Bronze Bushing | Cast Bronze Economically Price Cast turned bronze bushings are highly suitable for applications involving high loads due to their excellent wear resistance, corrosion resistance, and load-bearing capacity. Bronze, as a material, possesses inherent characteristics that make it an ideal choice for bushings in demanding environments. The casting process ensures a uniform distribution of material, while the turning operation provides a smooth and precise
Turned Bronze Bushing | Cast Bronze Economically Price
Cast turned bronze bushings are highly suitable for applications involving high loads due to their excellent wear resistance, corrosion resistance, and load-bearing capacity. Bronze, as a material, possesses inherent characteristics that make it an ideal choice for bushings in demanding environments. The casting process ensures a uniform distribution of material, while the turning operation provides a smooth and precise surface finish, further enhancing the bushing's performance.
In high-load applications, cast turned bronze bushings can effectively withstand the forces and pressures, maintaining stability and durability over extended periods. They are commonly used in machinery, equipment, and other industrial applications where reliability and long-term performance are crucial.
Moreover, the material's corrosion resistance makes it suitable for use in environments with exposure to moisture or chemicals, reducing the risk of damage or failure. Overall, cast turned bronze bushings are a robust and reliable solution for high-load applications that demand exceptional durability and performance.
Turned Bronze bushing bearings (with grooves / without grooves) offer technically and cost-effective bearing solutions.
Cast bronze bearings & bushings are ideal for maintenance-free & heavy-duty applications. Available as cylindrical, thrust washer, flange bearings
We offer an extensive range of Cast bronze bearings products. If you are also interested in minimal stock-keeping and fast deliveries, then you’ve come to the right place!
You can search by bronze bushing type and material, categories, properties, etc.
China suppliers of slide bearings, plain bearings, and Turned Bronze Bushing. World-class logistics!
Turned Bushings
Bushings with an inner diameter of 0-360 mm and an outer diameter of 12-400 mm are manufactured from bronze alloys, Bronze alloys like e.g. Tin bronze and C86300 bronze bushing.
It features high load capacity, low weight, and good corrosion resistance. We can offer different kinds of bronze alloys based on durability, service, etc. Tolerance is much tighter than wrapped bronze bushes.
Special Bearings & Turned Bushings
Turned Bronze bushing are often technically and economically favorable bearing solutions.
High loading capability, low weight, good corrosion resistance, and small radial diameters are some good properties for turned bearings. The choice of the suitable material and the arrangement of additional lubrication properly are important when using turned bearings.
Machined Cast Bronze Bushing Material:
Turned bearings and bearing elements can be manufactured in several copper alloys. The material will be chosen to meet the specific needs for each construction. This is important to reach the optimal performance for the lifetime, service, and total economy. Properties for the standard materials are on the table. In addition to standard materials there are many other alloys to use when necessary.
Technical data
| Material Composition %: | Cu 62-68%, Zn Rest, Al 5-7,5%, Fe 2-4%, Mn 2,5-5%) |
| Yield point N/mm² | >450 |
| Tensile strenght N/mm² | >750 |
| Permitted load N/mm² | 100 |
| Permitted speed m/min | 15 |
| Density: | 8,0 |
| Hardness HB: | >210 |
| Temperature range: | -40/+300°C |
