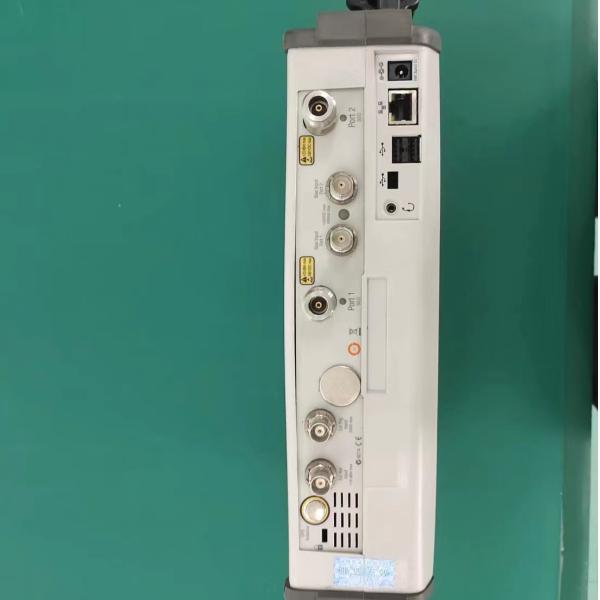

Used Anritsu MS2028C Portable Handheld Vector Network Analyzers VNA Master 5 KHz To 20 GHz Calibrated

Used Anritsu MS2028C portable handheld vector network analyzers VNA Master 5 kHz to 20 GHz Calibrated

Description of Anritsu MS2028C:

The VNA Master MS2028C has a 12-term error correction algorithm with a typical measurement speed of 350 μsec per point. It is suited for tuning filters in the field where multiple S-parameters often interact during tuning. The MS2028C can measure and display all 2-port S-parameters at once with a one-time connection to the Device Under Test (DUT).

The Anritsu VNA Master MS2028C handheld vector network analyzer is the industry's highest performance, handheld solution for true 2-port, 2-path measurements, anytime, anywhere. It specifically addresses complex cable and antenna measurement needs in the field with accurate, vector corrected 2-port magnitude, phase, and Distance-To-Fault measurements. The VNA Master MS2028C covers a frequency band from 5 kHz to 20 GHz, which contains a wide variety of radio frequency communications systems as well as many radar and microwave communications systems. Also offered in the VNA Master Family, the MS2036C and MS2038C models offer a high-performance spectrum analyzer with ultra-low noise floor.

Features:

• Two-active-port, fully-reversing Vector Network Analyzer
• Measures all four S-parameters with a single connection
• 350 usec per data point, ideal for filter tuning
• 12-term error correction algorithm
• Distance Domain option
• Time Domain option includes Gated Time Domain, LP Processing, and Phasor Impulse mode
• Standard three-year warranty (battery one-year warranty)

• Broadband coverage of 5 kHz to up to 20 GHz
• True 2-path, 2-port Vector Network Analyzer
• Ultimate accuracy with 12-term error correction
• High Performance Handheld S-Parameters
• User-defined Quad Display for viewing all 4 S-Parameters
• Arbitrary data points up to 4001
• IF Bandwidth selections of 10 Hz to 100 kHz
• Directivity:
• > 42 dB up to 6 GHz (all models)
• > 36 dB > 6 GHz up to 20 GHz (all models)
• Supports Reciprocal Through Calibration types (SOLR, SSLR, SSSR)
• All models support waveguide measurements
• 350 μs/data point sweep speed
• USB/Ethernet for PC data transfer and control
• Automate repetitive tasks via Ethernet & USB
• PIM Hunting
• Field upgradeable firmware
• Operation to +55 ºC: full performance on AC or battery
• Store more than 4000 traces and setups in memory
• Portable: 4.5/4.8 kg (9.9/10.5 lb)

List of Options
